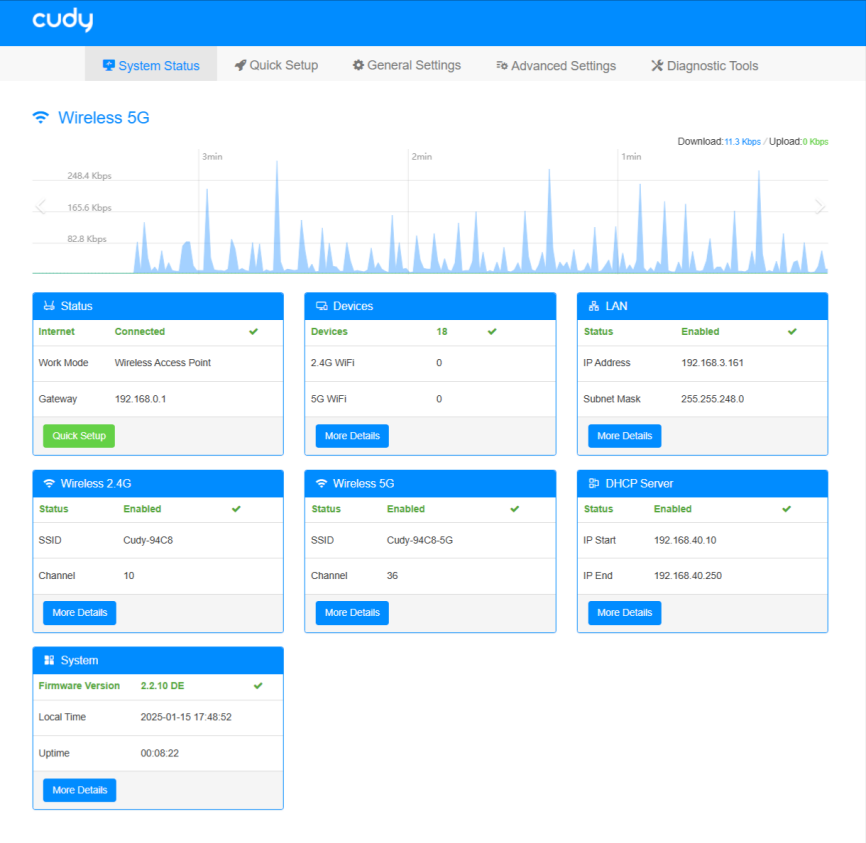

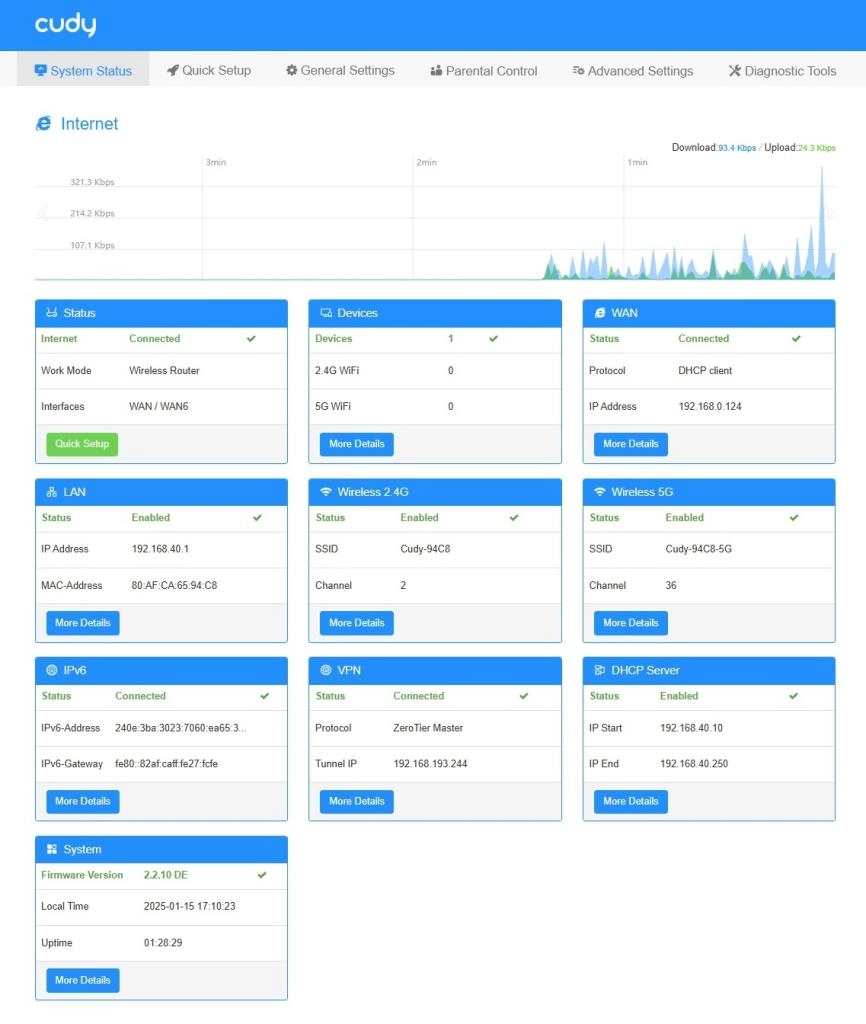

System Status

Device

shows the number of devices connected to this Router, via Ethernet cable or 2.4G WiFi or 5G WiFi. Click More Details to know more information about these devices, or configure the settings.

  • Internet: Click to enable/disable the Internet for the devices.
  • VPN: Click to enable/disable VPN for the devices.
  • Operation: Click to pop up the editing page as below, where you can customize the device name and limit the download/upload rate.

System

shows the System status. Click More Details to view more information about it or make changes on Settings page.

  • Status shows the Router info about firmware version, model, hardware version, local time and uptime.
  • Statistics shows the detailed traffic information of each interface in the statistics list.
  • ARP lists the connected devices' IP address with its bound MAC address, Hostname and Interfaces.
  • Active IP Routes table contains a list of routes to network destinations associated with and known by the Router.
  • System Log tracks all the Router behaviors. It is used for technical support to diagnose and troubleshoot for the Router.
