Overview¶

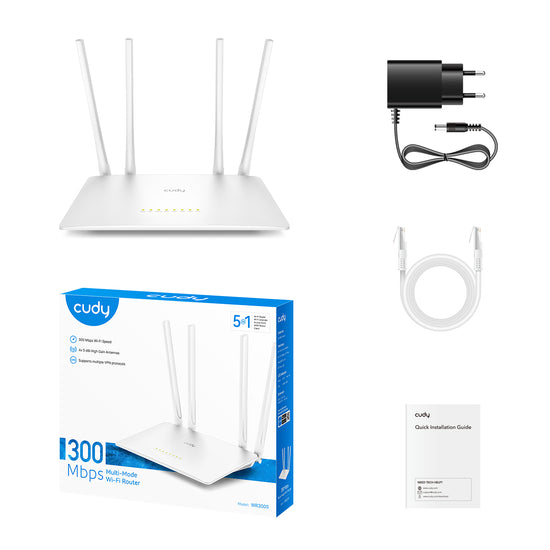

Package Content¶
Front Panel¶
| LED | Status | Indication |
|---|---|---|
| Power | On | Power is on. |
| Off | Power is off. | |
| WiFi | On | Wireless is enabled. |
| Off | Wireless is disabled. | |
| Internet | On | Internet service is available. |
| Off | No Internet available. | |
| WAN | On | Router's WAN port is connected. |
| Off | Router's WAN port is not connected. | |
| LAN1/2/3/4 | On | Router's LAN1/2/3/4 port is connected. |
| Off | Router's LAN1/2/3/4 port is not connected. |

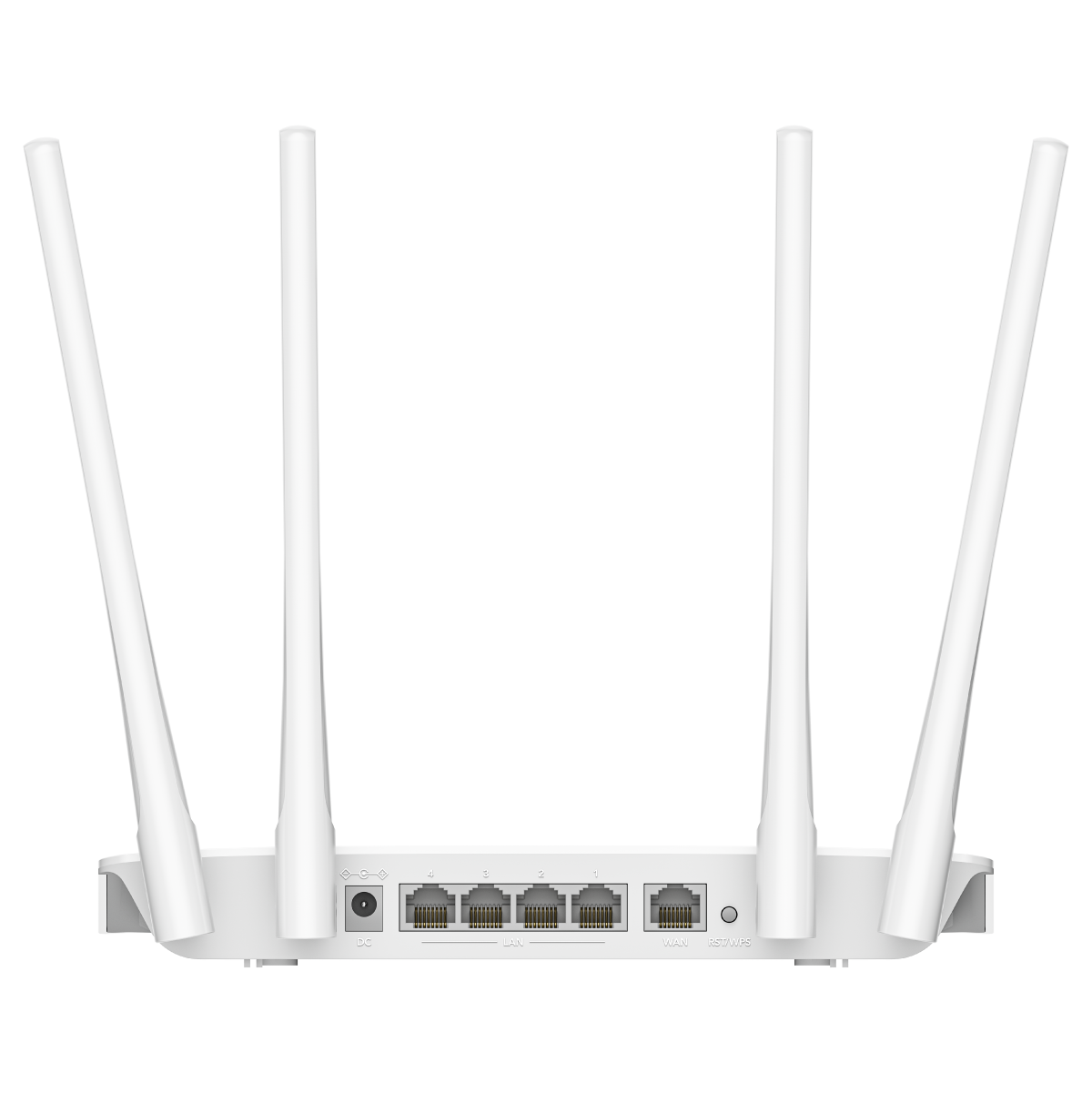

Back Panel¶
| Interface | Instruction |
|---|---|
| DC power jack | Plug the provided power adapter to supply power. |
| LAN1/2/3/4 Port | Connect to Ethernet device(s). |
| WAN Port | Connect to the Internet. |
| RST/WPS Button |
Press for 1 second to authorize WPS connection. Press for 5 seconds to restore factory defaults. |
