Overview¶

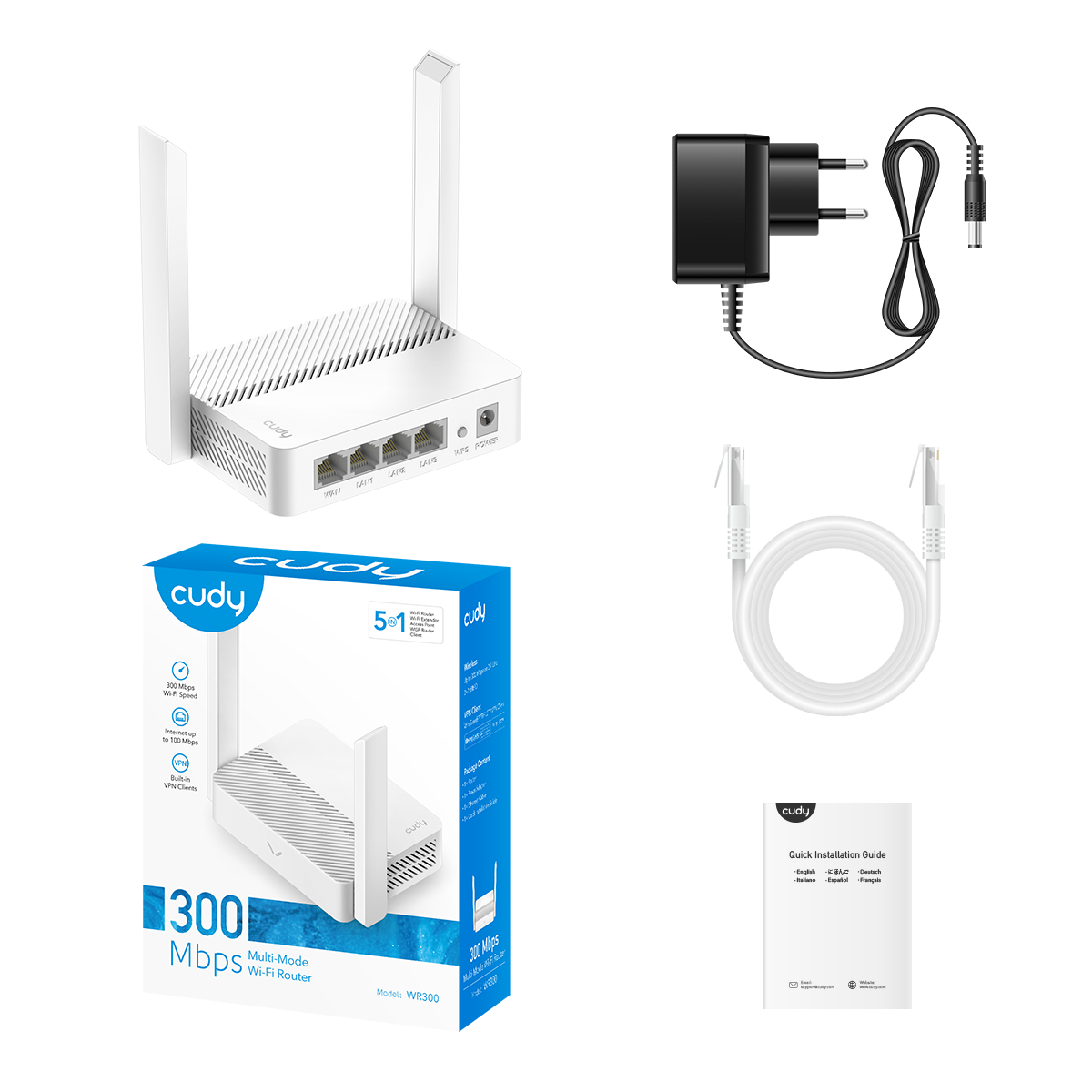

Package Content¶
Front Panel¶
| LED | Color | Status & Indication |
|---|---|---|
| (System) | Red | Quick Blink: System is rebooting. Slow Blink: System is initializing. Solid On: System has already started, but without Internet. |
| White | Quick Blink: Pairing with or connecting to the (main) mesh; or during the WPS process. Slow Blink: Already connected to the main mesh but with weak signal. Solid On: System has already started with Internet, or has already connected to the main mesh with strong signal. |
|
| / | Off: Power is off. |
Back Panel¶
| Interface | Instruction |
|---|---|
| DC POWER Jack | Plug the provided power adapter to supply power. |
| LAN1/2/3 Port | Connect to Ethernet device(s). |
| WAN Port | Connect to the Internet. |
| WPS Button | Press for 1 second to authorize WPS connection. |
| RESET Button | Press for 5 seconds to restore factory defaults. |
