Overview¶
Package Content¶

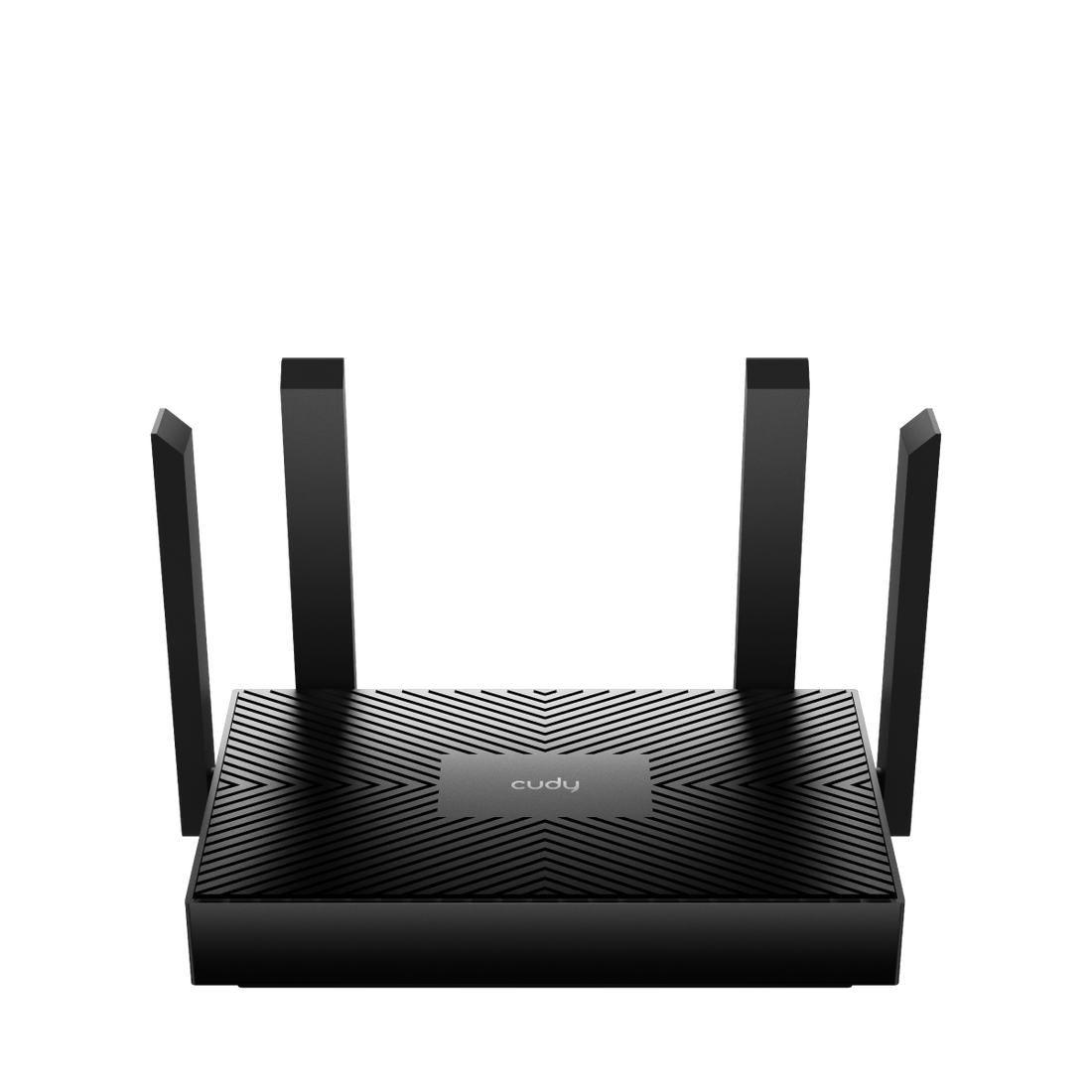

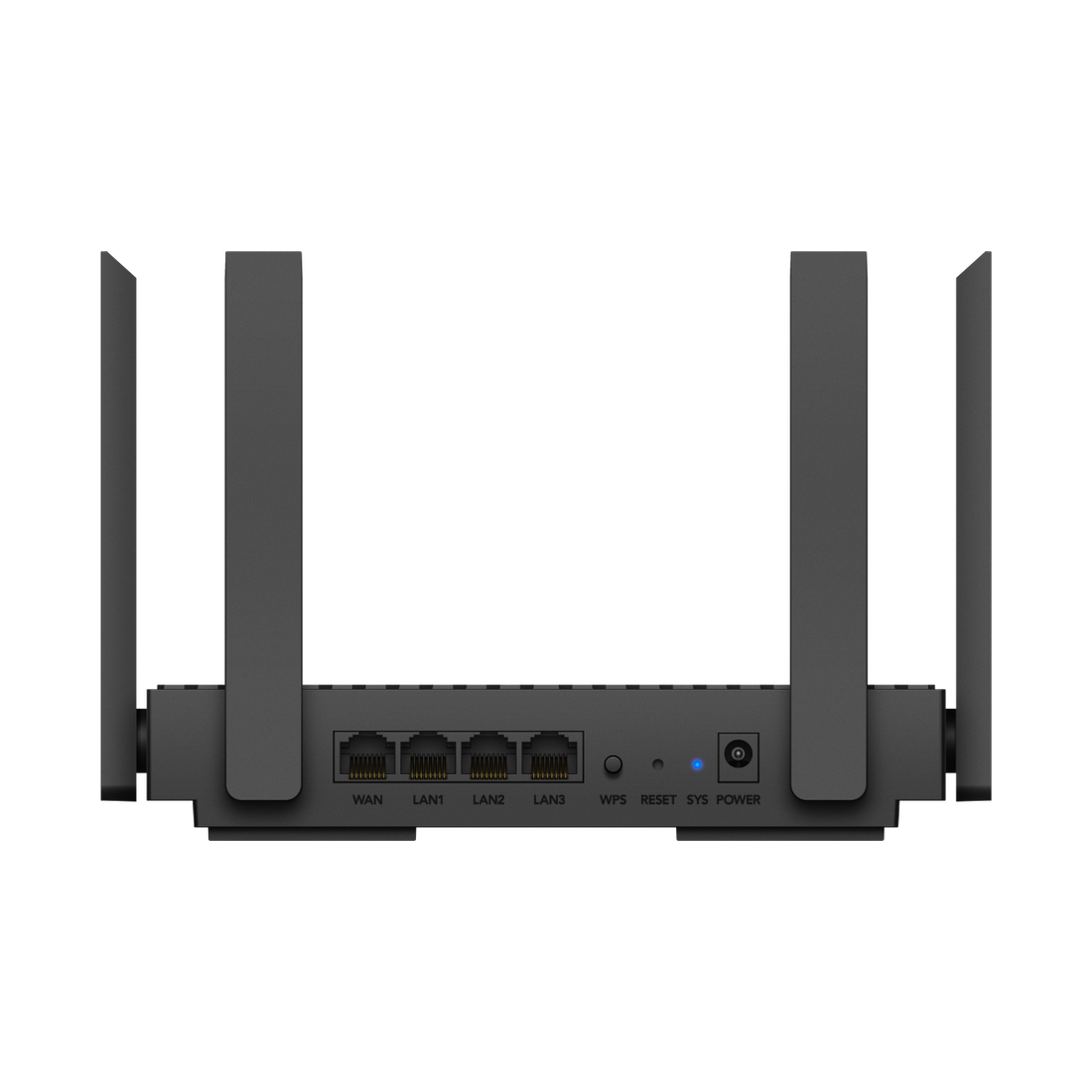

Front Panel & Back Panel¶
| Interface | Instruction |
|---|---|
| DC POWER Jack | Plug the provided power adapter to supply power. |
| LAN1/2/3 Port | Connect to an Ethernet device. |
| WAN Port | Connect to the Internet. |
| WPS Button | Press for 1 second to authorize WPS connection. |
| RESET Button | Press for 5 seconds to restore factory defaults. |
| SYS LED | Indication |
|---|---|
| Off | Power is off. |
| Red Blink | System is initializing. |
| Red ON | System has already started, but without Internet. |
| White Blink | System has already started and connecting to the Internet or to the front-end network. |
| White On | Already connected to the Internet. |
