Overview¶

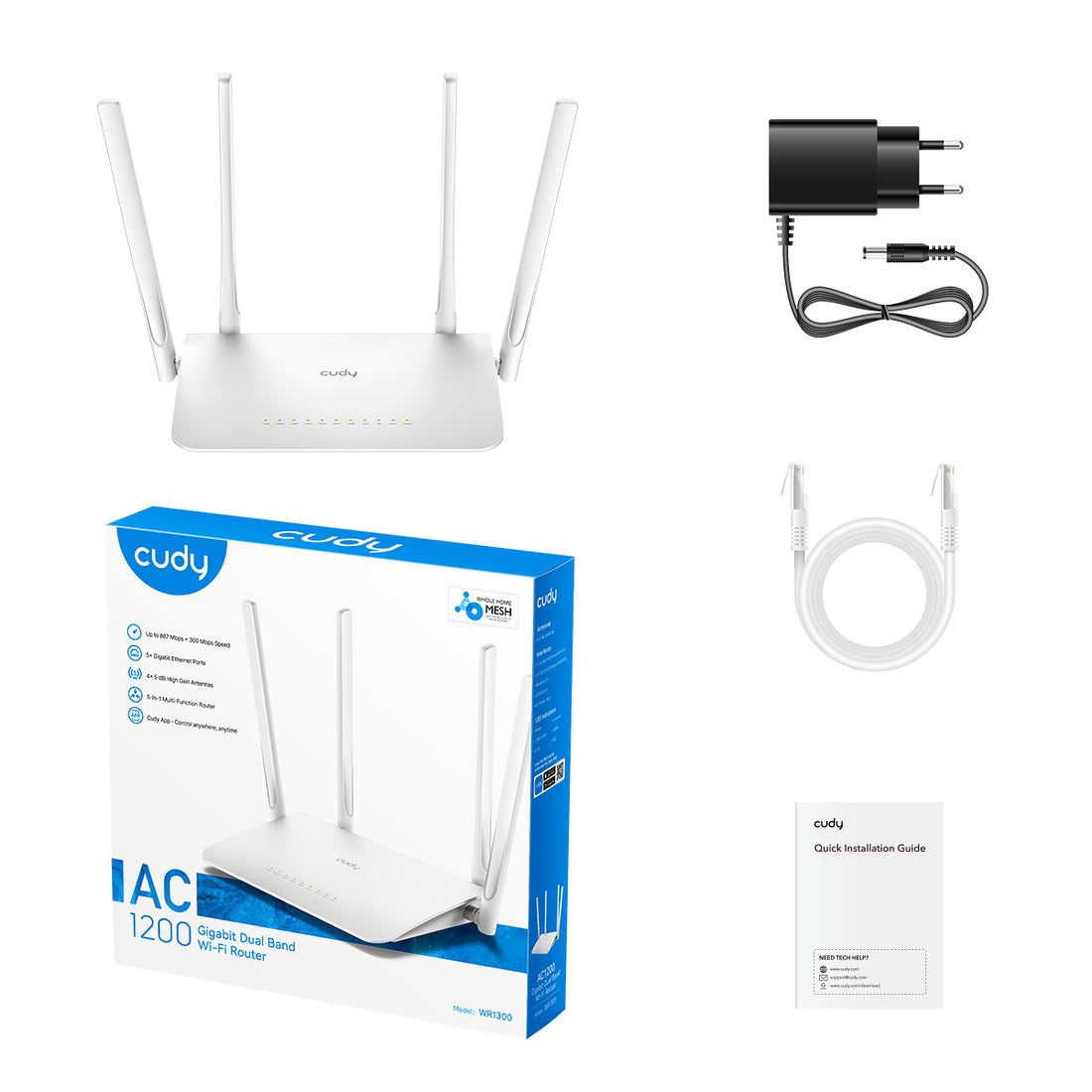

Package Content¶
Front Panel¶
| LED | Status | Indication |
|---|---|---|
| Power | On | The system has started up successfully. |
| Blink | The system is starting up or the firmware is being upgraded. Do not disconnect or power off your Router in the process. |
|
| Off | Power is off. | |
| Internet | On | Internet service is available. |
| Off | The Router’s Internet port is unplugged or no Internet available. | |
| LAN1/2/3/4 | On | LAN1~4 powered-on device is connected to the Router’s LAN port. |
| Blink | There is data transmitting. | |
| Off | No powered-on device is connected to the Router’s LAN port. | |
| WAN | On | The Router’s WAN port is connected. |
| Blink | There is data transmitting. | |
| Off | The Router’s WAN port is not connected. | |
| 2.4G | On | 2.4GHz Wireless Band is enabled. |
| Blink | 2.4GHz WPS Connection is in process. | |
| Off | 2.4GHz Wireless Band is disabled. | |
| 5G | On | 5GHz Wireless Band is enabled. |
| Blink | 5GHz WPS Connection is in process. | |
| Off | 5GHz Wireless Band is disabled. |

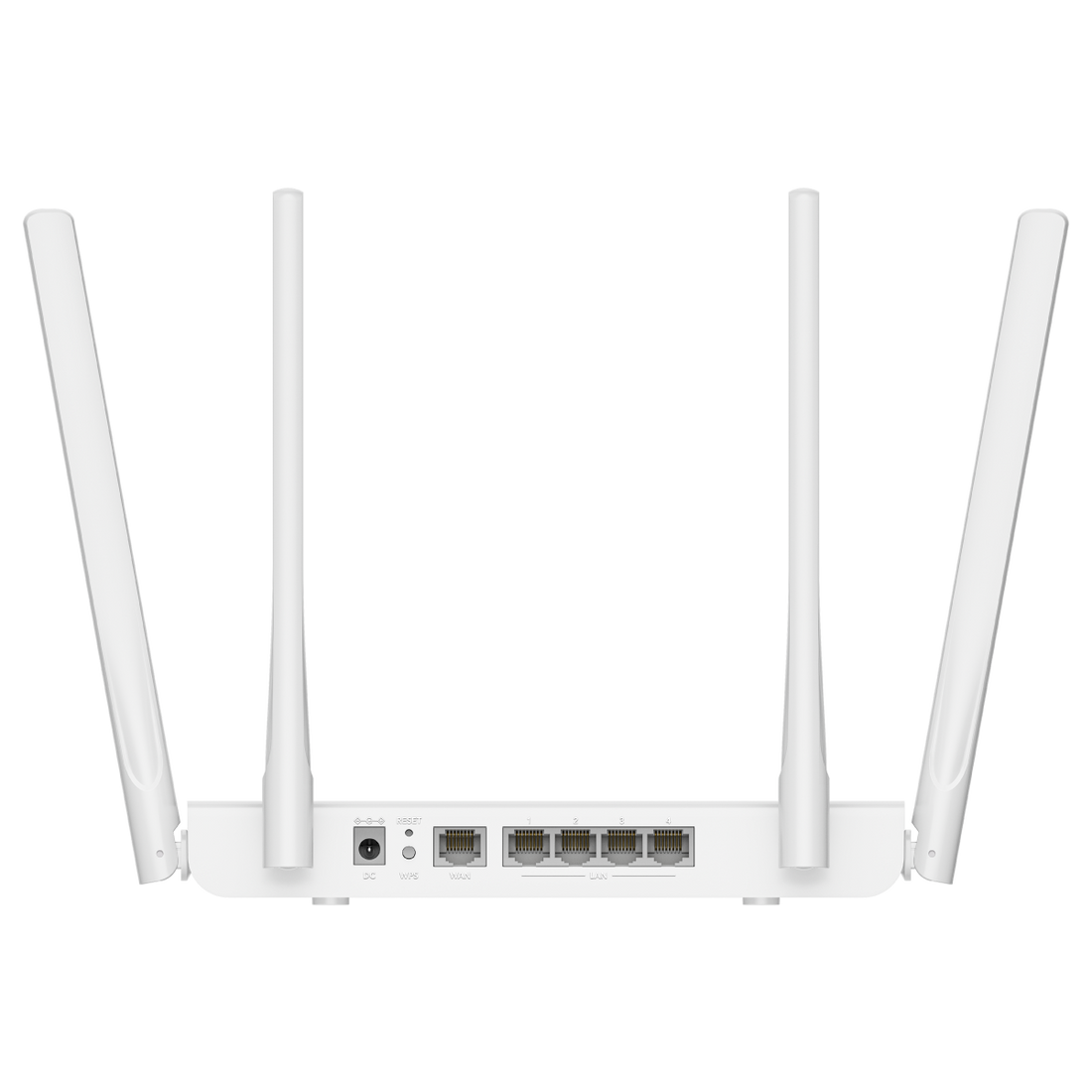

Back Panel¶
| Interface | Instruction |
|---|---|
| DC POWER Jack | Plug the provided power adapter to supply power. |
| WAN Port | Connect to the Internet. |
| LAN1/2/3/4 Port | Connect to an Ethernet device. |
| WPS Button | Press for 1 second to authorize WPS connection. |
| RESET Button | Press for 5 seconds to restore factory defaults. |
