Overview¶

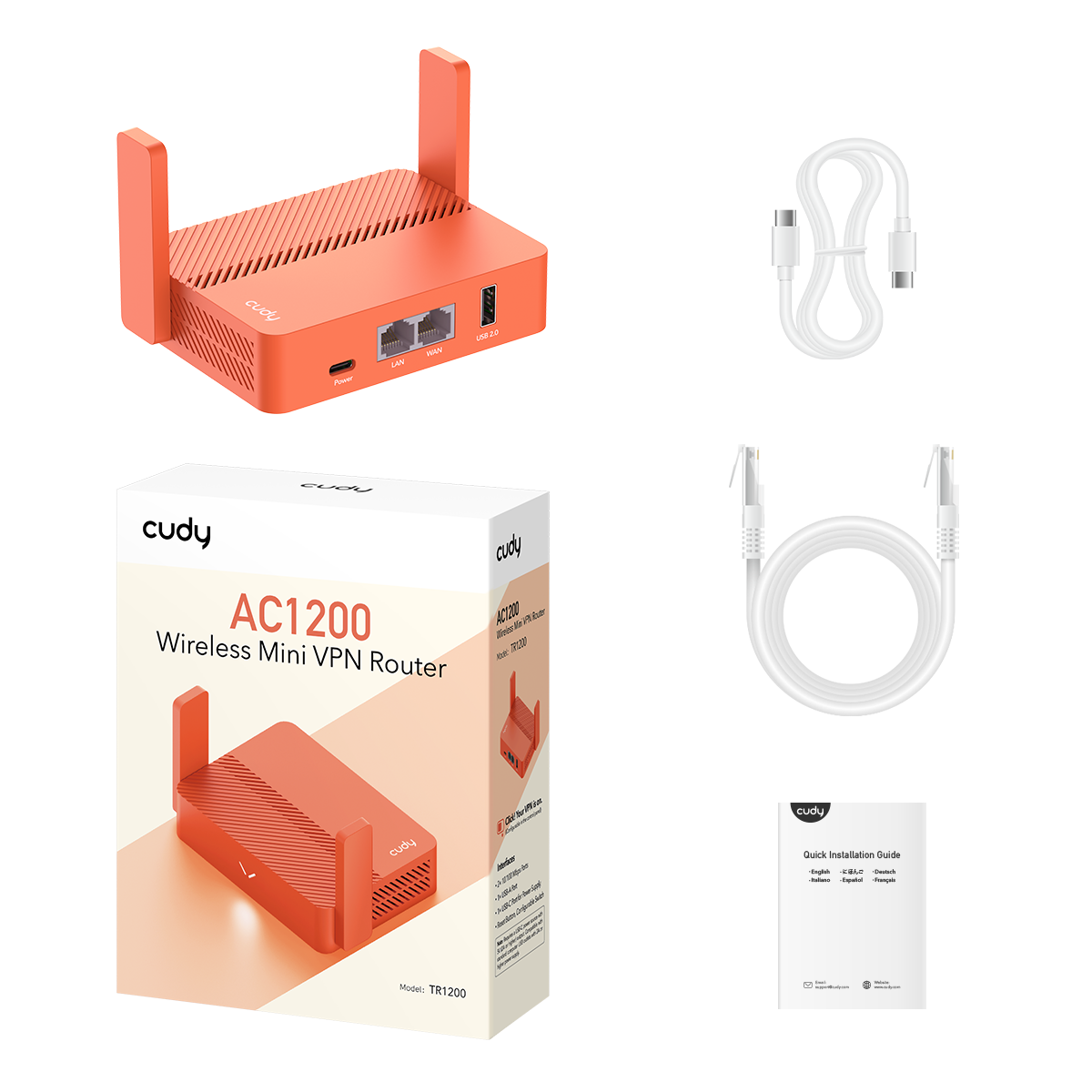

Package Content¶

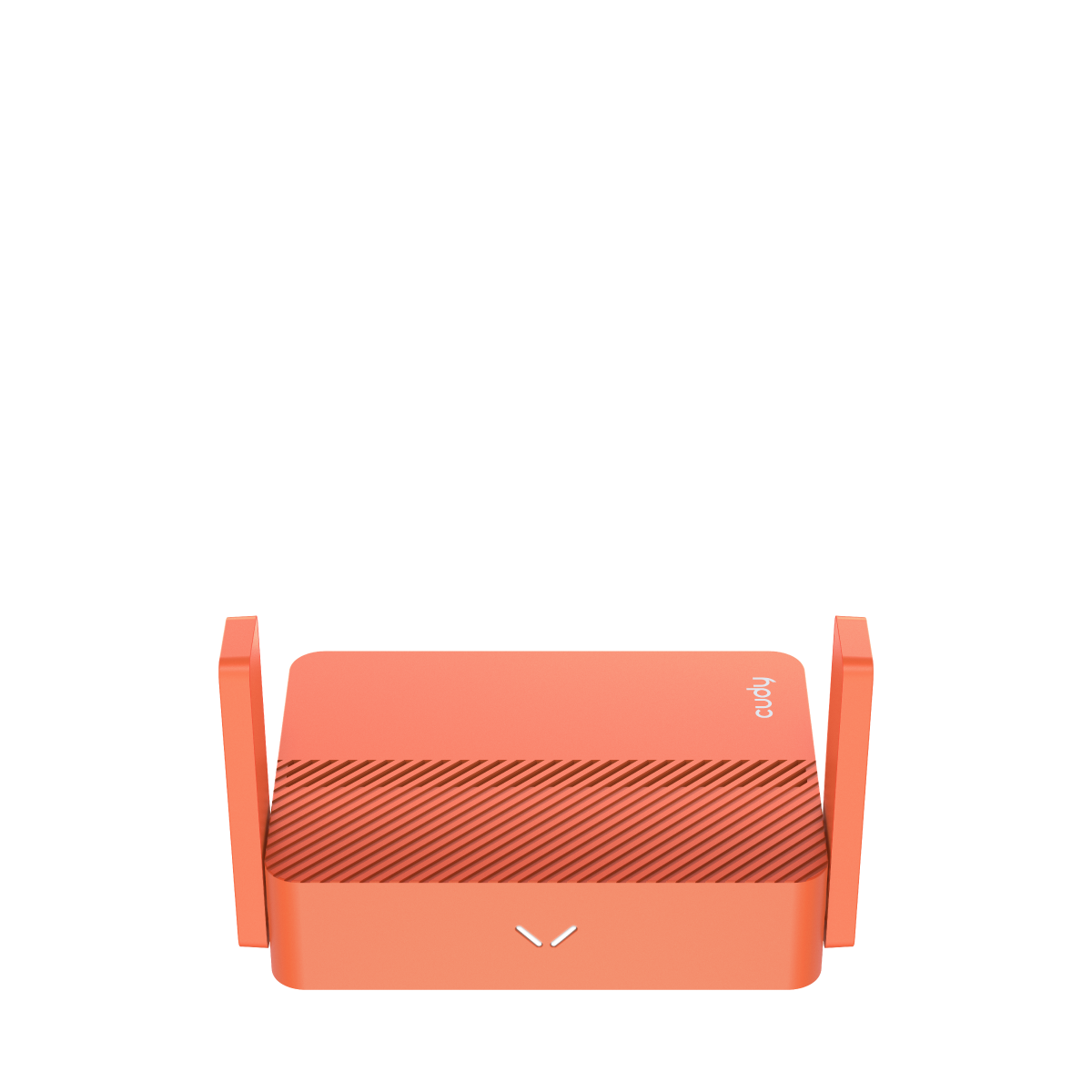

Front Panel¶
| LED | Color | Status & Indication |
|---|---|---|
| System | Red | Blink: System is initializing. Solid On: System has already started, but without Internet. |
| White | Blink: Connecting to the Internet or upstream network. Solid On: Already connected to the Internet. |
|
| / | Off: Power is off. |

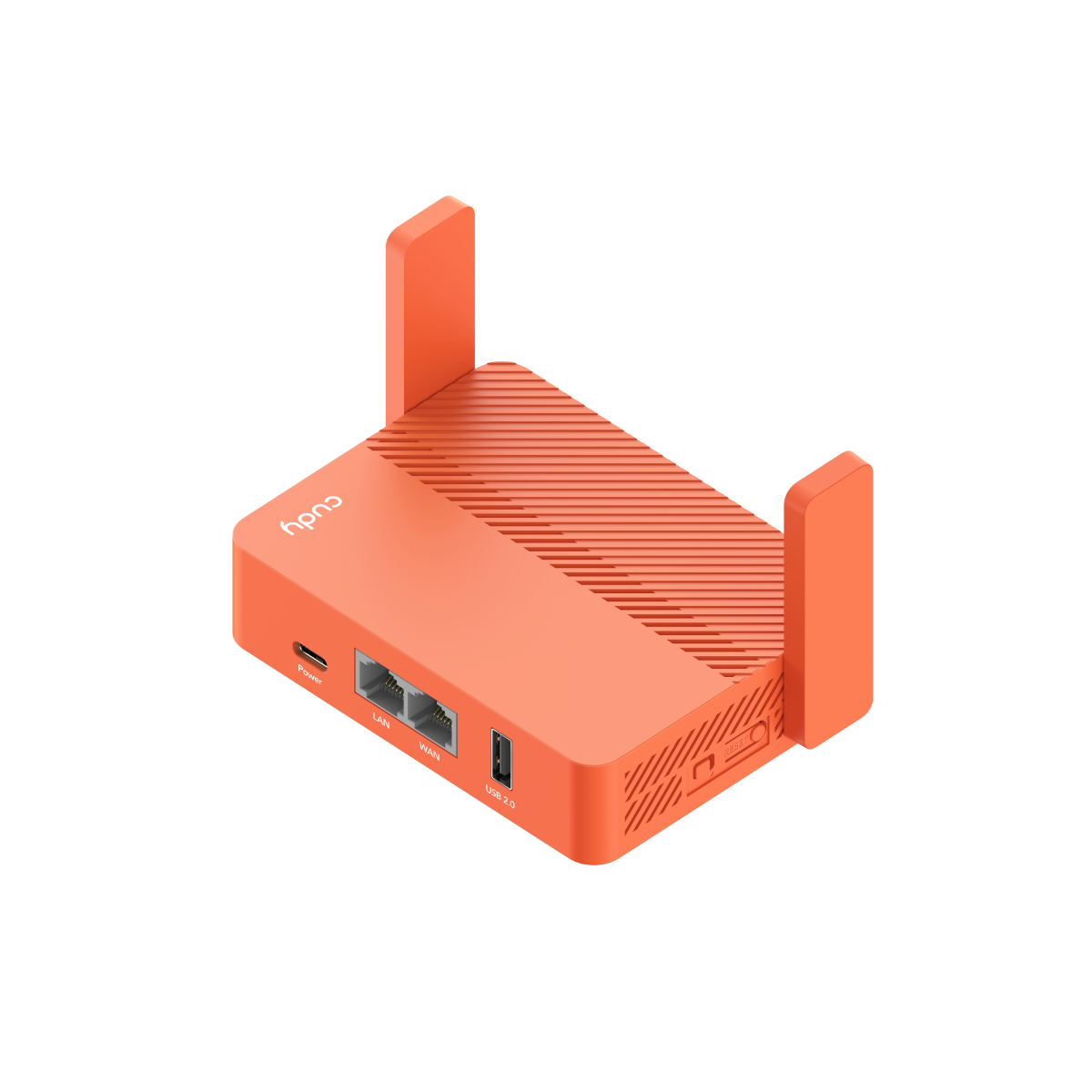

Back Panel¶
| Interface | Instruction |
|---|---|
| USB-C Power Port | Connect a USB-C power adapter to supply power to the device. |
| LAN Port | Connect to an Ethernet device. |
| WAN Port | Connect to the ISP modem or upstream network. |
| USB 2.0 Port | Connect a USB storage device for file sharing or storage. |
| RESET Button | Press and hold for 5 seconds to restore factory defaults. |
| Toggle Button | Disabled by default. You can log into www.cudy.net, go to Advanced Settings -> System -> Toggle Button, and enable either the VPN or LED control function. |
