GS1016E

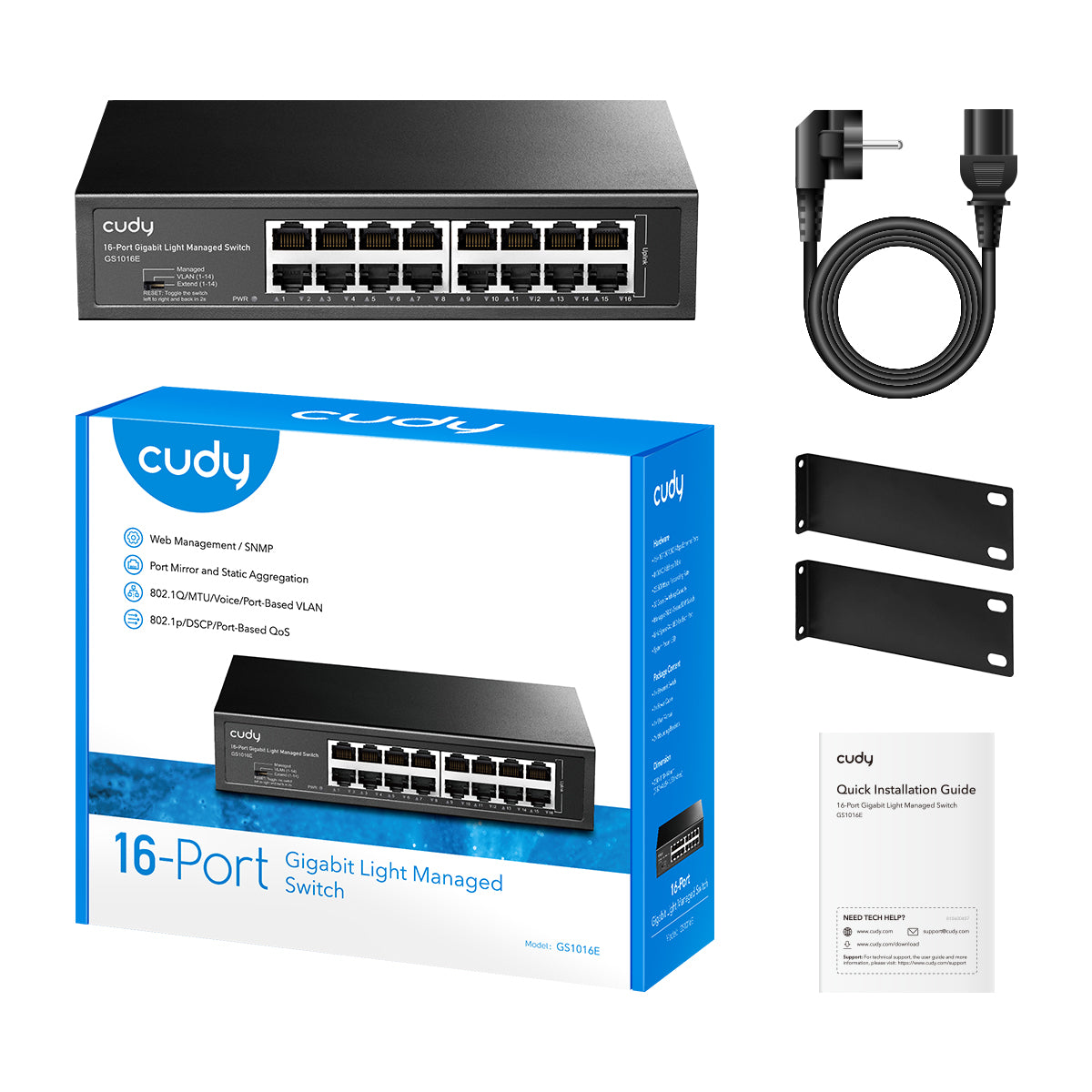

Package Content

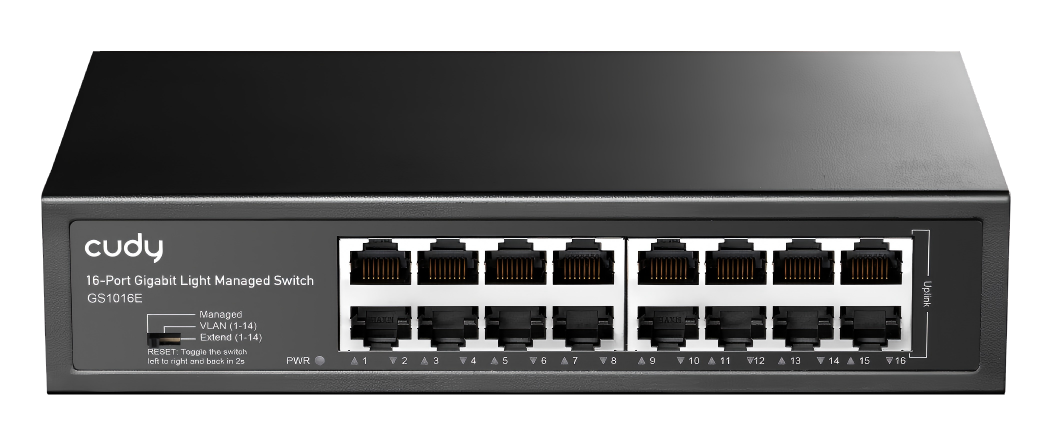

Appearance
LED & DIP
| LED | Description |
|---|---|
| PWR |
On: Power is on. Off: Power is off. |
|
Link/Act (1-16) |
On: Link but no data. Flash: Link and data transmission. Off: No link or no data. |
| DIP | Description |
| Managed | (Default) Light-managed Mode. Allow to manage the swicth on the web-based GUI. |
| VLAN | Non-managed Mode. The designated Downlink Port 1-22 are isolated from each other, and only transmit data with the Uplink Port 23-24. |
| Extend | Non-managed Mode. The data speed of Port 1-22 will be capped at 10 Mbps and the maximum transmission distance be 250 meters. |
| RESET | Toggle the switch from left to right and back within 2 seconds to restore the factory defaults. |
Topology
