Overview

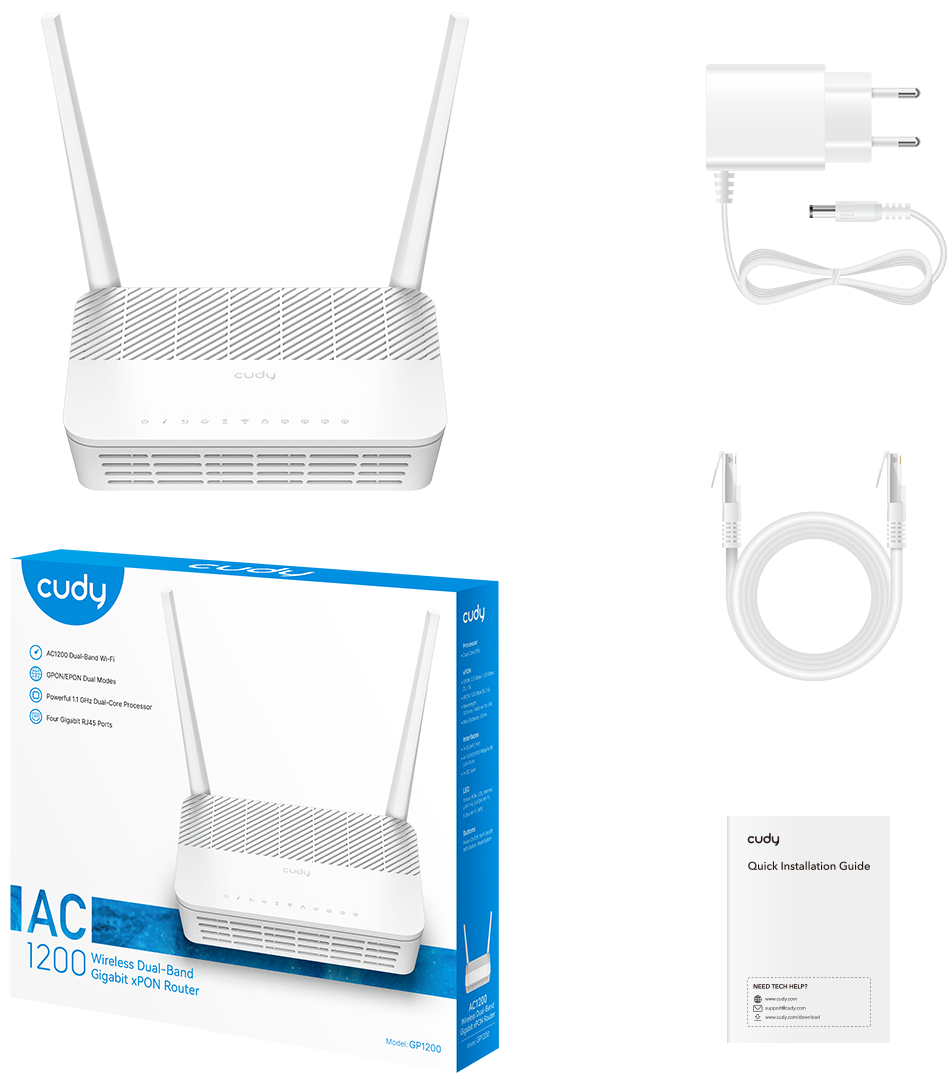

Package Content

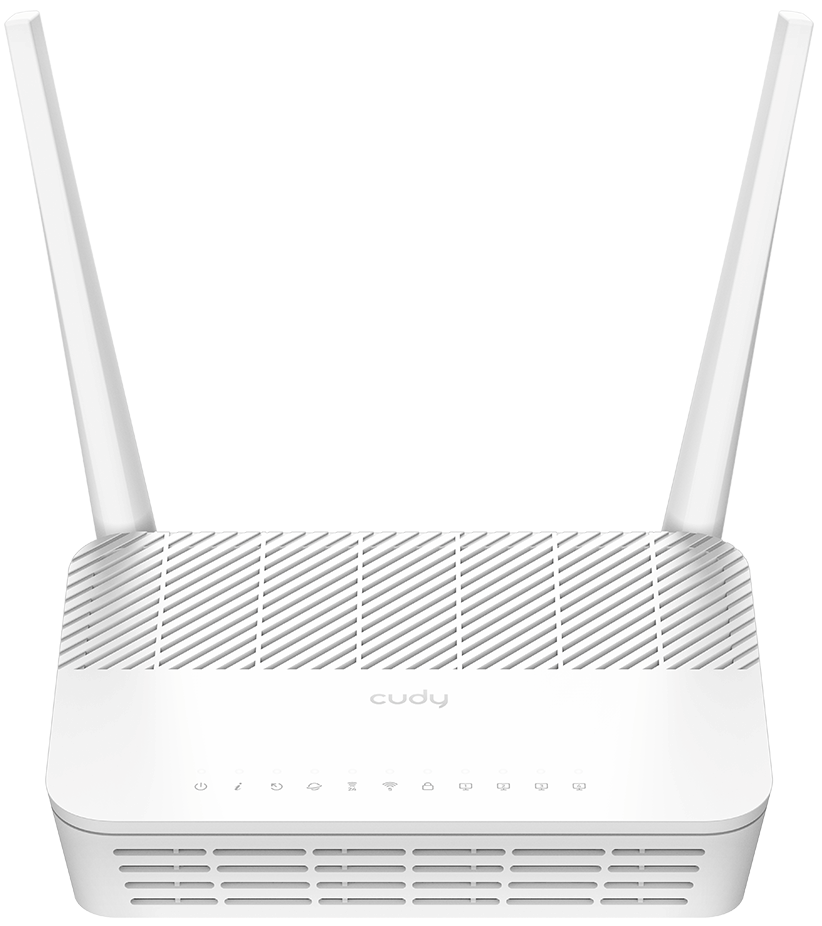

Front Panel & LEDs
| LED | Status | Indication |
|---|---|---|
 (Power) |
On | Power is on. |
| Off | Power is off. | |
 (PON) |
On | PON is registered successfully. |
| Flash | PON is registering. | |
| Off | PON is not connected or registered. | |
 (LOS) |
Flash | Optical signal is weak or lost. |
| Off | Optical signal is normal. | |
 (Internet) |
On | Internet is connected. |
| Off | Internet is disconnected. | |
 (2.4GHz Wireless) |
On | 2.4GHz Wireless is enabled. |
| Off | 2.4GHz Wireless is disabled. | |
 (5GHz Wireless) |
On | 5GHz Wireless is enabled. |
| Off | 5GHz Wireless is disabled. | |
 (WPS) |
Flash | In WPS process. |
| On | On for about 1 minute when WPS is successful. | |
| Off | Not in the WPS process. | |
 (LAN1~4) |
On | LAN port is connected. |
| Off | LAN port is not connected. |
Interfaces
| Interface | Description |
|---|---|
 |
|
| ON/OFF Button | Press to turn on/off the PON router. |
| Power Jack | Plug the provided power adapter to supply power. |
| LAN4/WAN Port | Connect to an Ethernet device or Internet. |
| LAN1/2/3 Port | Connect to an Ethernet device. |
 |
|

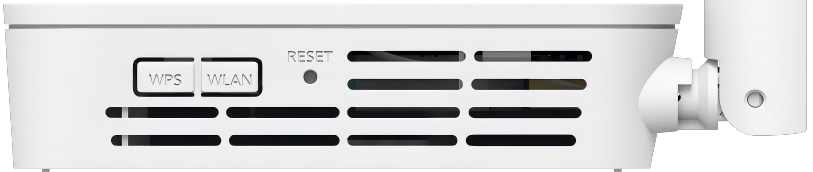

| WPS Button | Press for 1 seconds to authorize WPS connection. |
| WLAN Button | Press for 2 seconds to turn on/off Wi-Fi. |
| RESET Button | Press for 5 seconds to restore factory defaults. |
 |
|

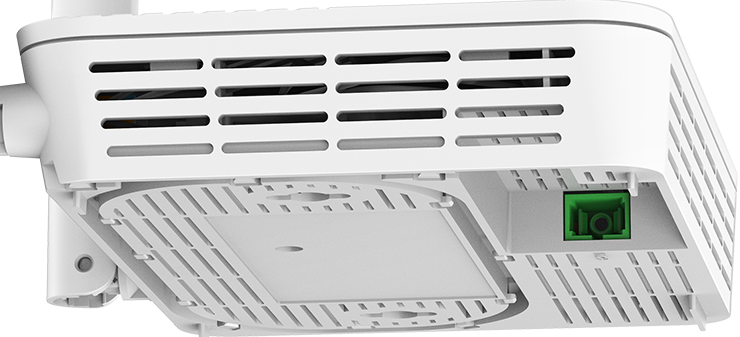

| PON Port | Connect to the Internet with an optical fiber. |
