System

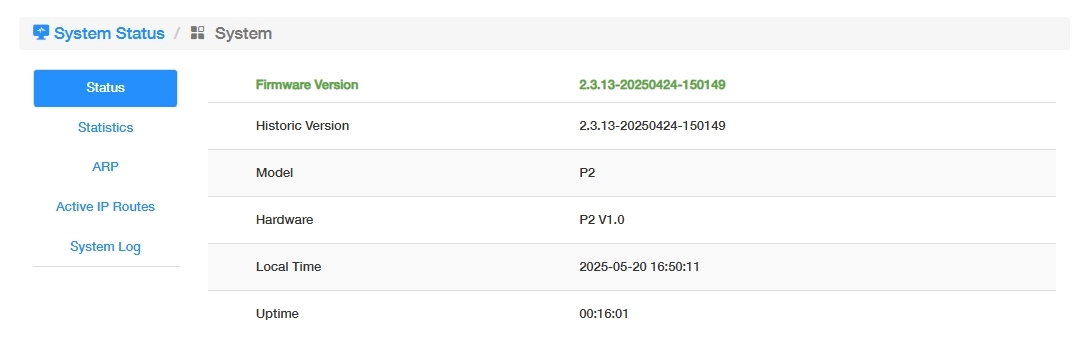

  • Status shows the Router info about firmware version, model, hardware version, local time and uptime.

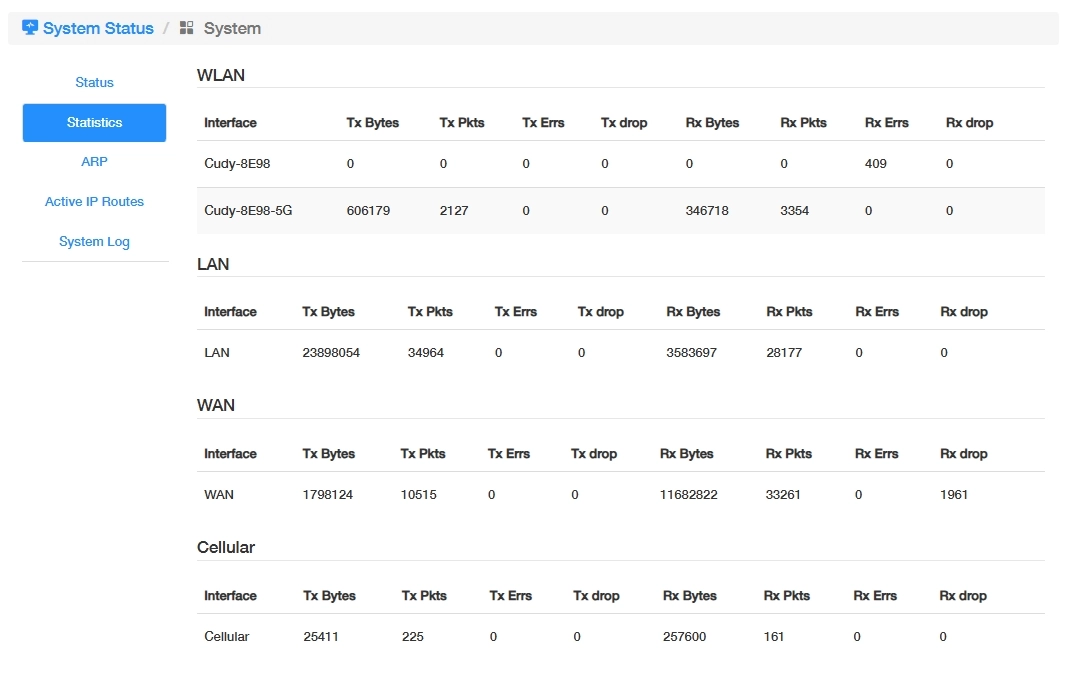

  • Statistics shows the detailed traffic information of each interface in the statistics list.

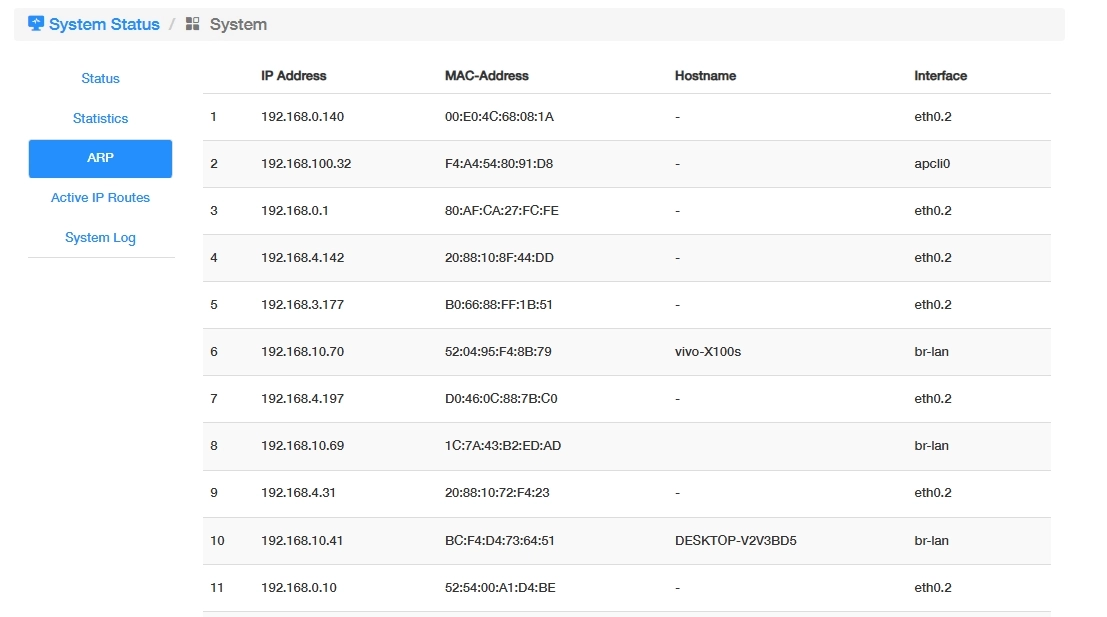

  • ARP lists the connected devices' IP address with its bound MAC address, Hostname and Interfaces.

  • Active IP Routes table contains a list of routes to network destinations associated with and known by the Router.

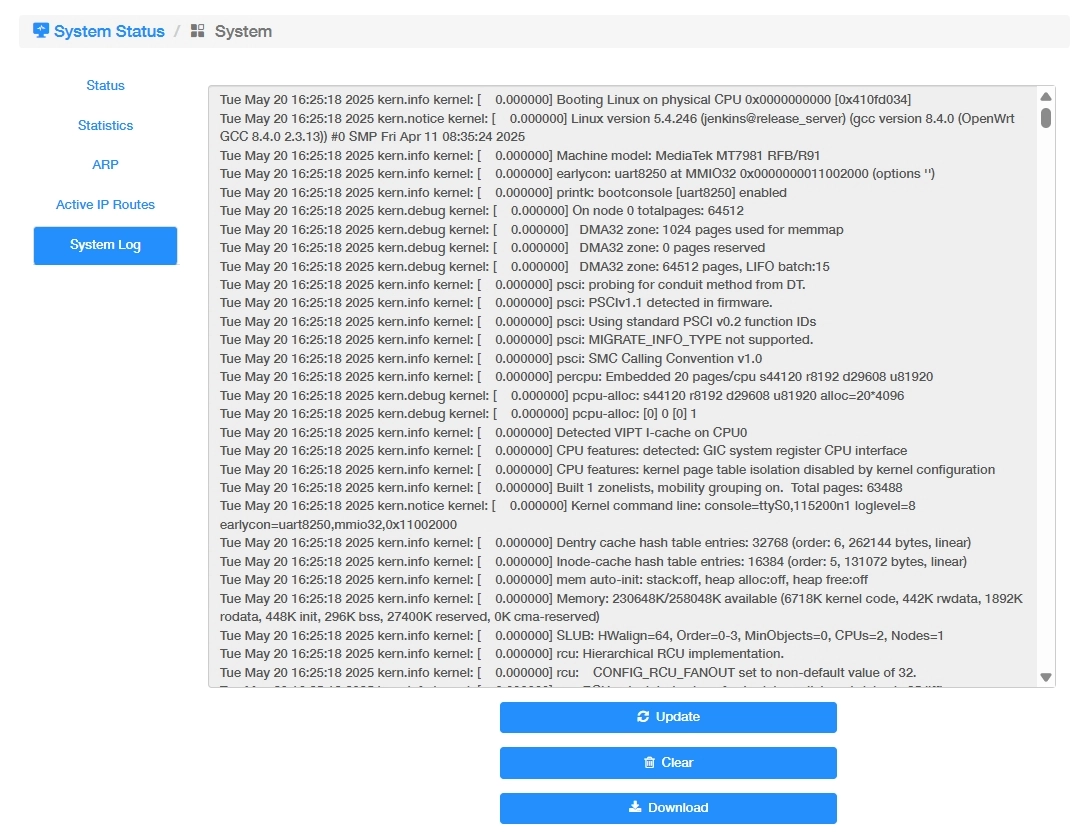

  • System Log tracks all the Router behaviors. It is used for technical support to diagnose and troubleshoot for the Router. It is also available on Diagnostic Tools -> System Log page.

    • Update: Click to refresh the system log.
    • Clear: Click to erase all the system log up till now.
    • Download: Click to download the system log for technical support.
