Overview¶

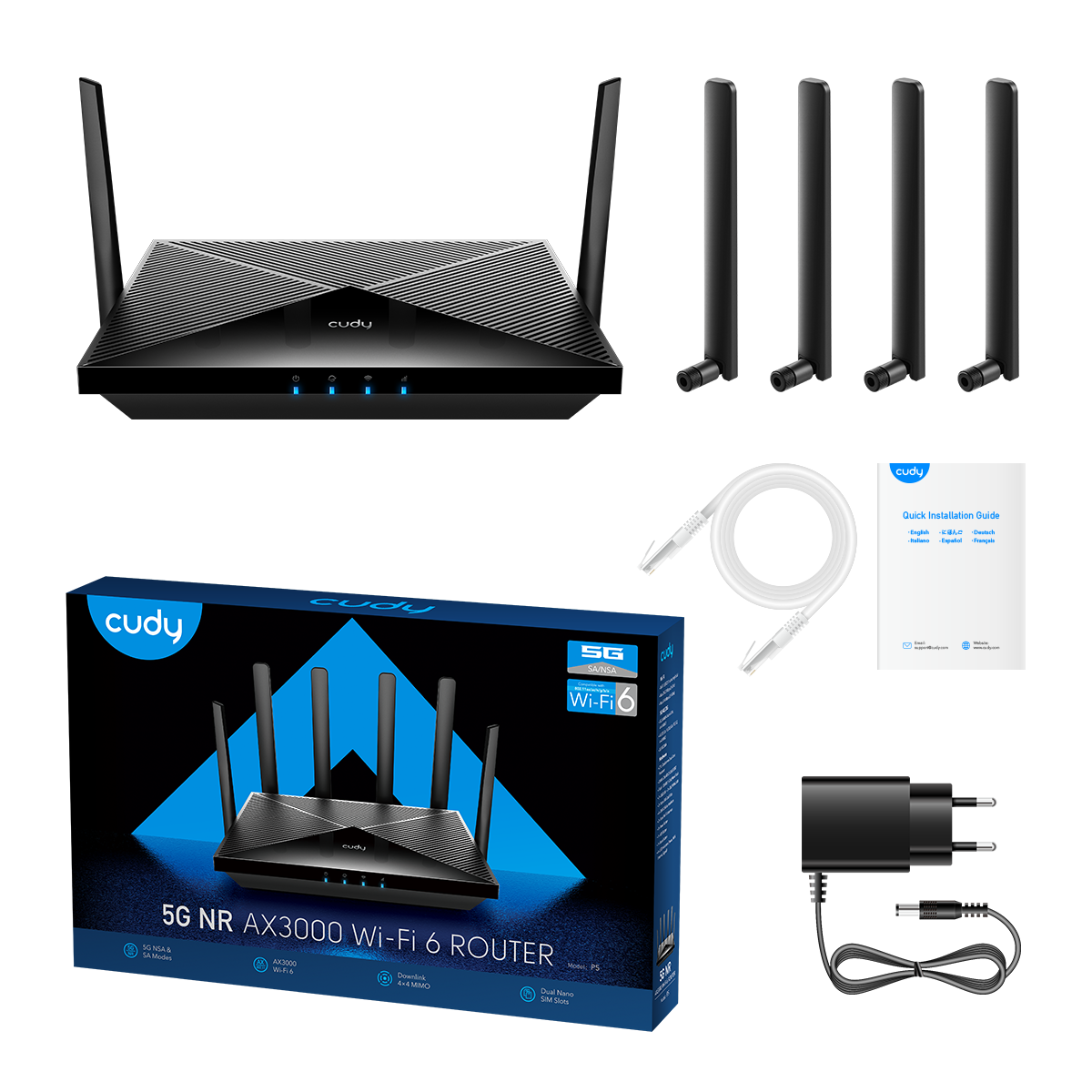

Package Content¶
Front Panel¶
| LED | Status | Indication |
|---|---|---|
 (System) |
Off | Power is off. |
| Blink | System is initializing. | |
| On | System has started up successfully. | |
 (Internet) |
Off | System or power is off. |
| Red | No Internet available. | |
| Purple | 2G/3G/4G Internet available. | |
| Blue | 5G/WAN Internet available. | |
 (Wireless) |
Off | Wireless is disabled. |
| Blink | WPS Connection is in process. | |
| On | Wireless is enabled. | |
 (Signal Strength) |
Off | No signal. |
| Red | Internet Signal is weak. | |
| Purple | Internet Signal is medium. | |
| Blue | Internet Signal is strong. |

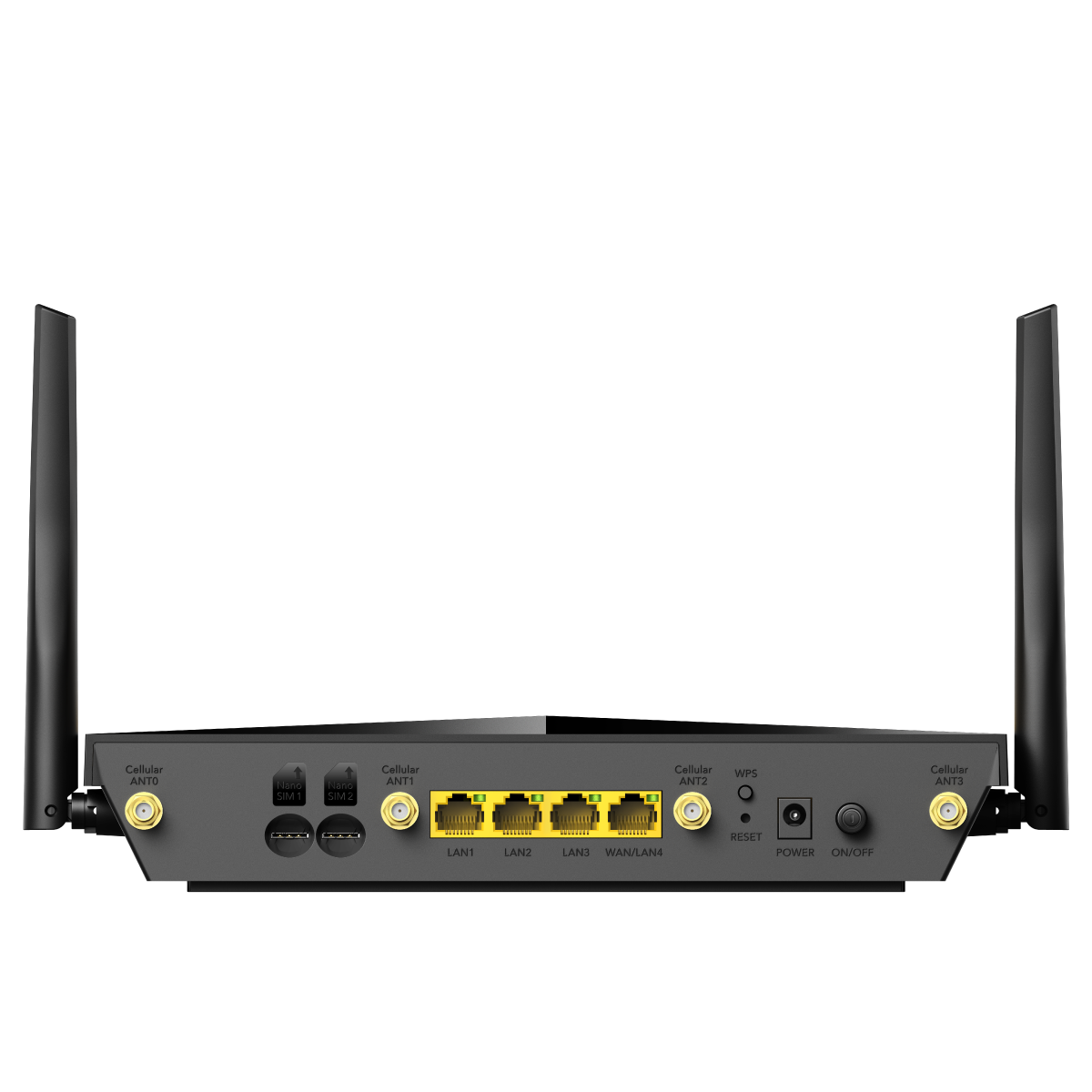

Back Panel¶
| Interface | Instruction |
|---|---|
| DC POWER Jack | Plug the provided power adapter to supply power. |
| LAN1/2/3 Port | Connect to an Ethernet device. |
| WAN/LAN4 Port | Connect to the Internet or an Ethernet device. To switch between WAN and LAN, please log into the management webpage and go to Advanced Settings -> Network -> LAN/WAN Switch. |
| Cellular ANT0/1/2/3 | Install your extension antennas (not included in the box) to the SMA connector and placing the antennas outdoors, when the signal is too weak indoors. |
| Nano SIM1/2 Slot | Insert a nano SIM card to access the cellular network. |
| ON/OFF Button | Press to turn on or off the router. |
| WPS Button | Press for 1 second to authorize WPS connection. |
| RESET Button | Press for 5 seconds to restore factory defaults. |
