Overview

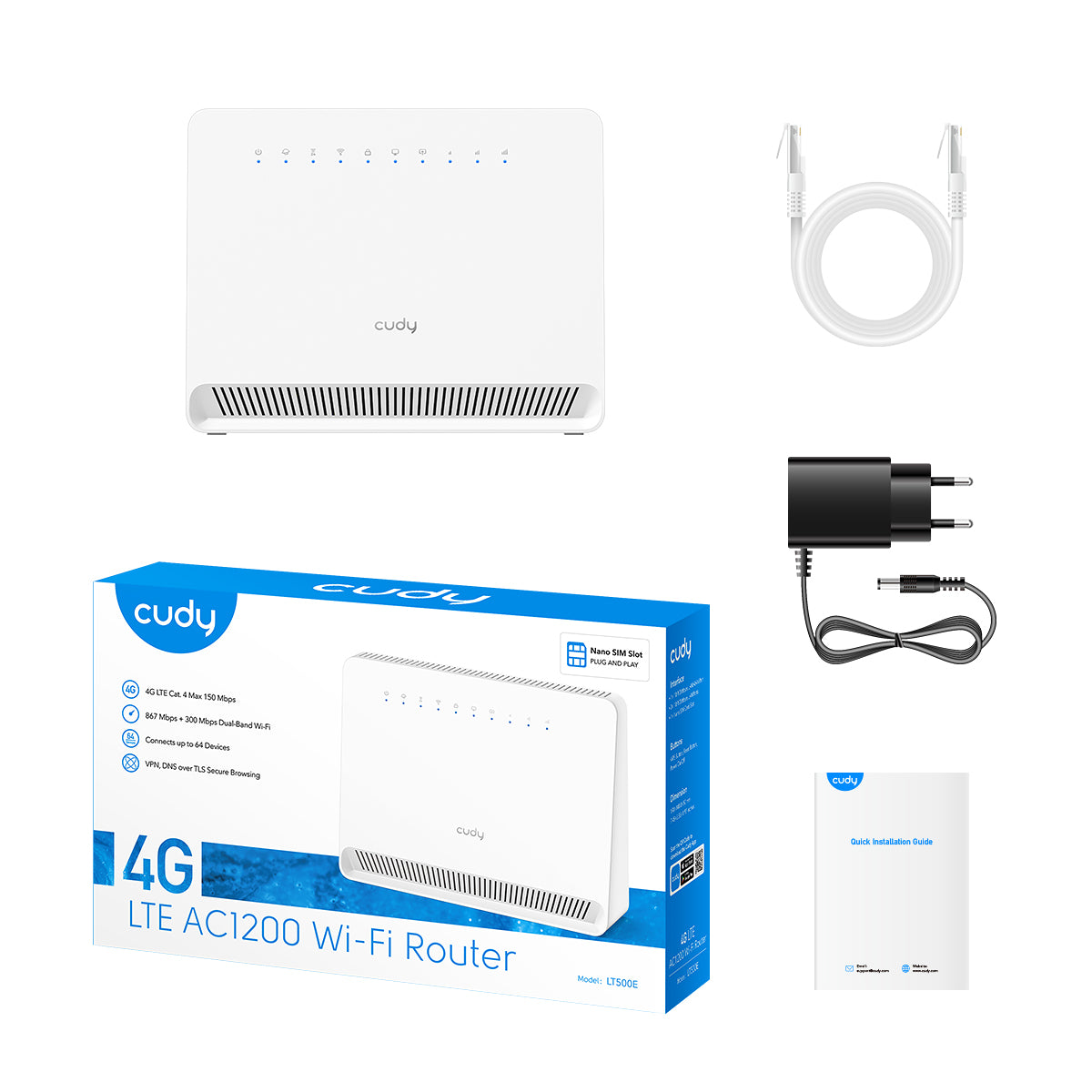

Package Content

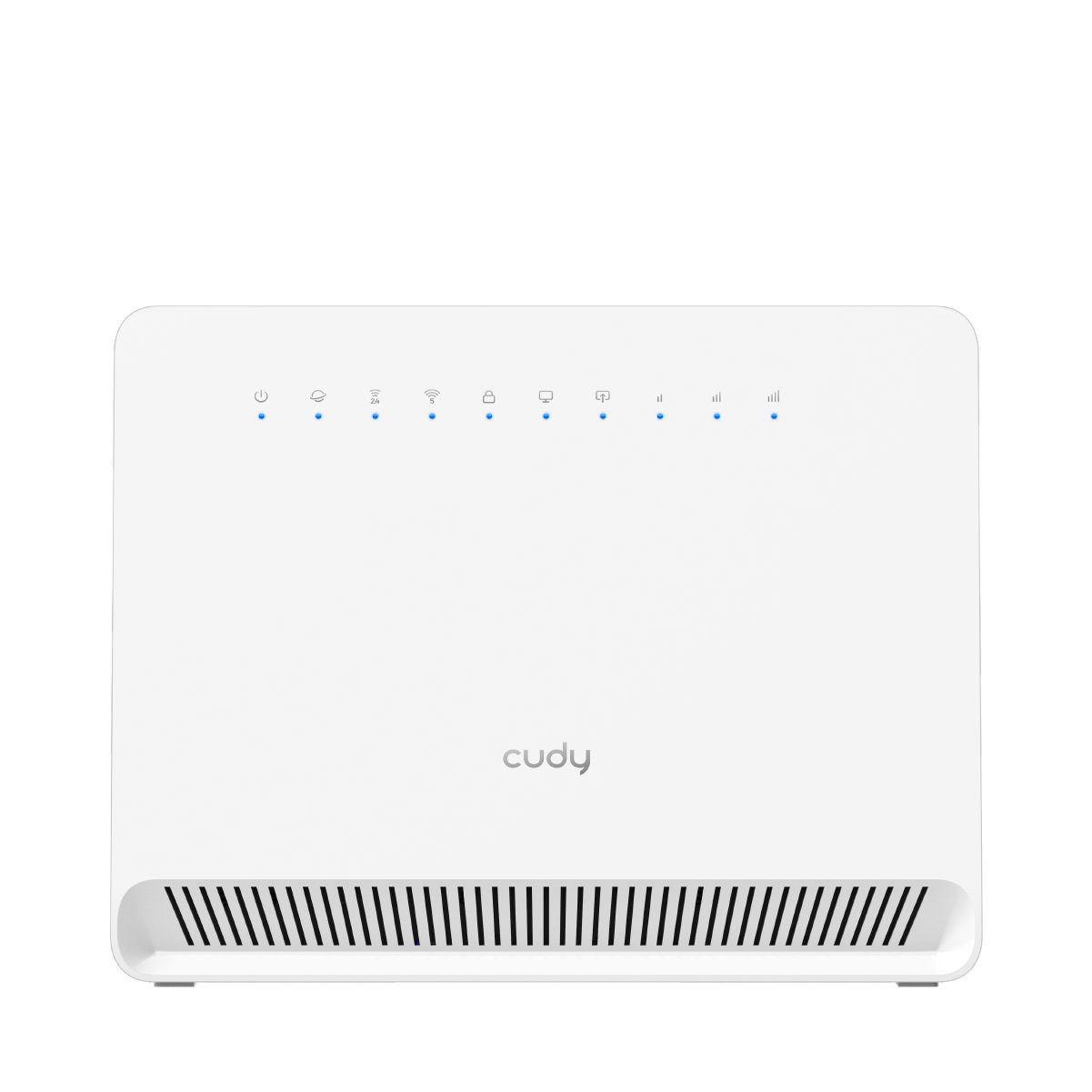

Front Panel

LED	Status	Indication
(System)	Off	Power is off.
	Blink	System is initializing.
	On	System has started up successfully.
(Internet)	Off	No Internet available.
	Blink	Connecting to the Internet.
	On	Internet is available.
(2.4G Wireless)	Off	2.4G wireless network is disabled.
	On	2.4G wireless network is enabled.
(5G Wireless)	Off	5G wireless network is disabled.
	On	5G wireless network is enabled.
(WPS)	Off	Not in the WPS process
	Blink	In the WPS process
	On	When WPS is successful, it will light on for about 1 minute and then turn off.
(LAN)	Off	There are no device(s) connected to the LAN port 1/2/3/4.
	On	There are device(s) connected to the LAN port 1/2/3/4.
(WAN)	Off	It is no connected when LAN4/WAN port is switched to be WAN port.
	On	It is connected when LAN4/WAN port is switched to be WAN port.
(Signal Strength)	Off	No signal.
	1st On	2G/3G/4G signal is weak.
	1st & 2nd On	2G/3G/4G signal is medium.
	3 On	2G/3G/4G signal is strong.

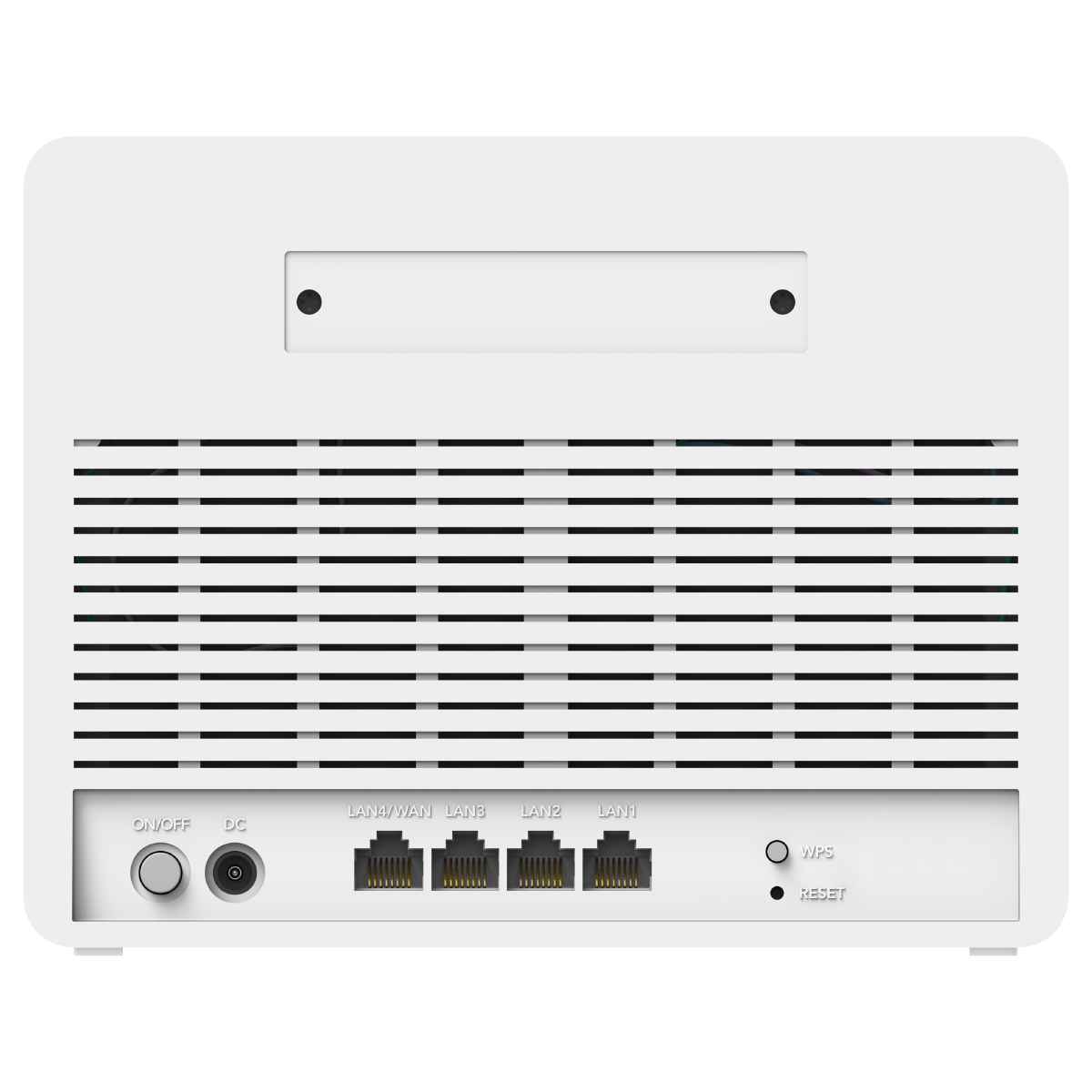

Back Panel

Interface	Instruction
ON/OFF Button	Press to turn on or off the router.
DC Power Jack	Plug the provided power adapter to supply power.
LAN1/2/3 Port	Connect to an Ethernet device.
LAN4/WAN Port	Connect to the Internet or an Ethernet device. To switch between WAN and LAN, please log into the management webpage and go to Advanced Settings -> Network -> LAN/WAN Switch.
WPS Button	Press for 1 second to authorize WPS connection.
RESET Button	Press for 5 seconds to restore factory defaults.

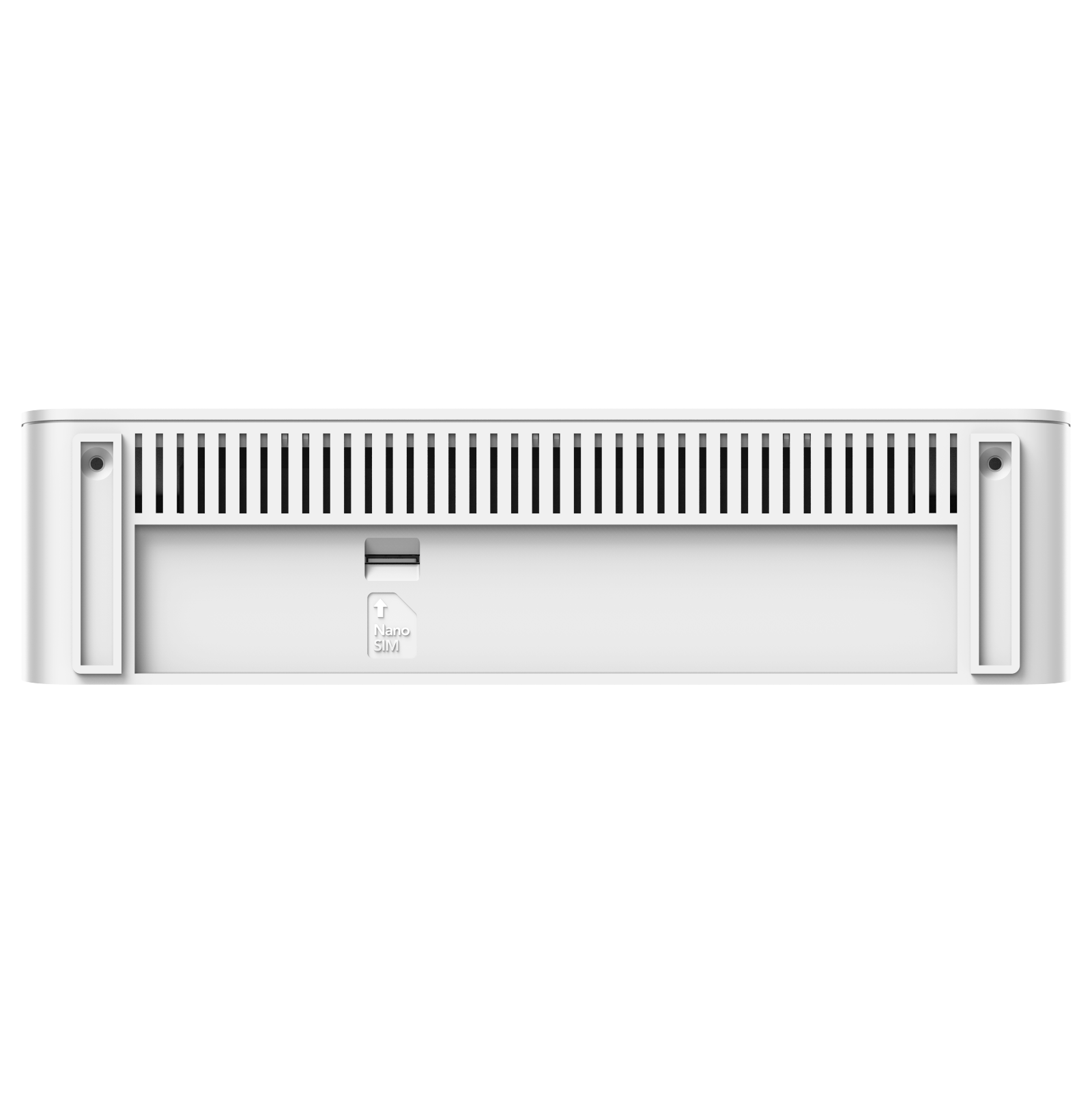

Nano SIM Slot	Insert a nano SIM card to access the cellular network.
