Overview¶

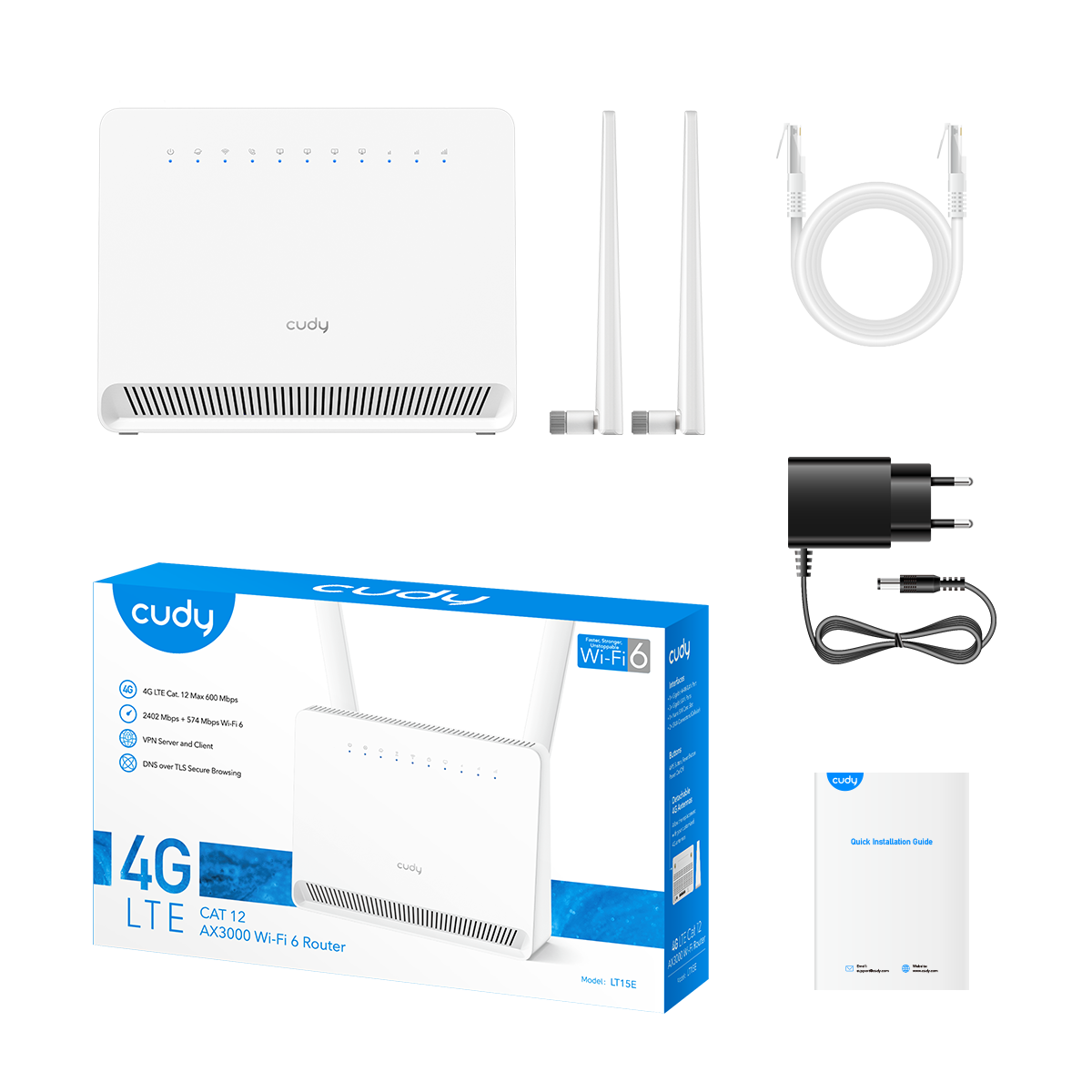

Package Content¶

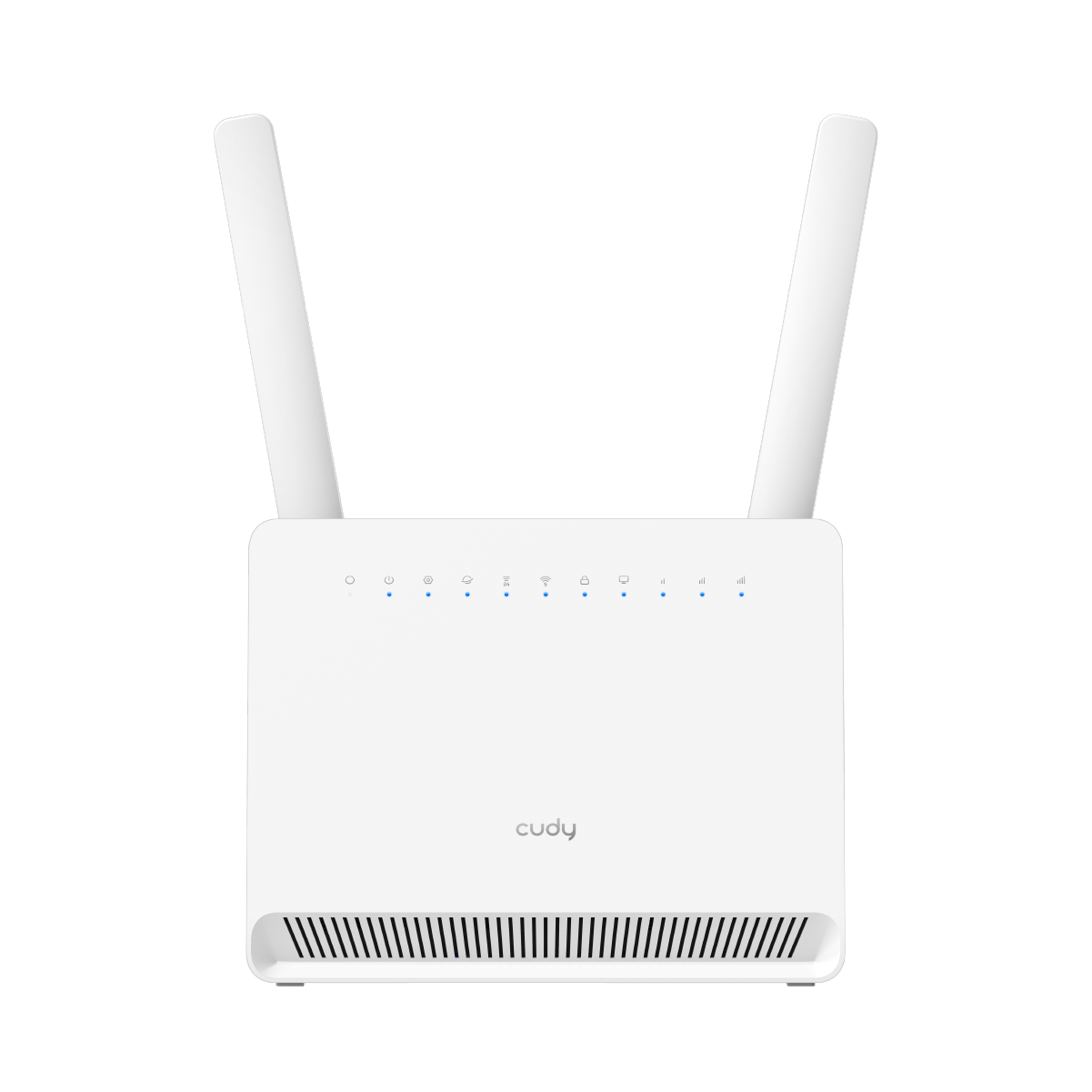

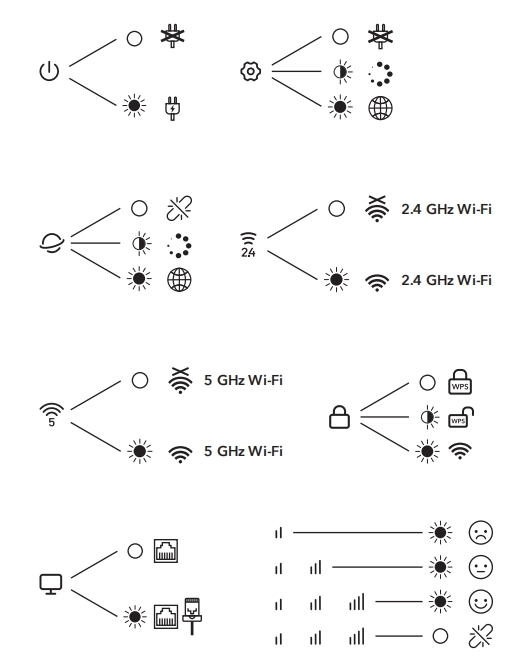

Front Panel¶

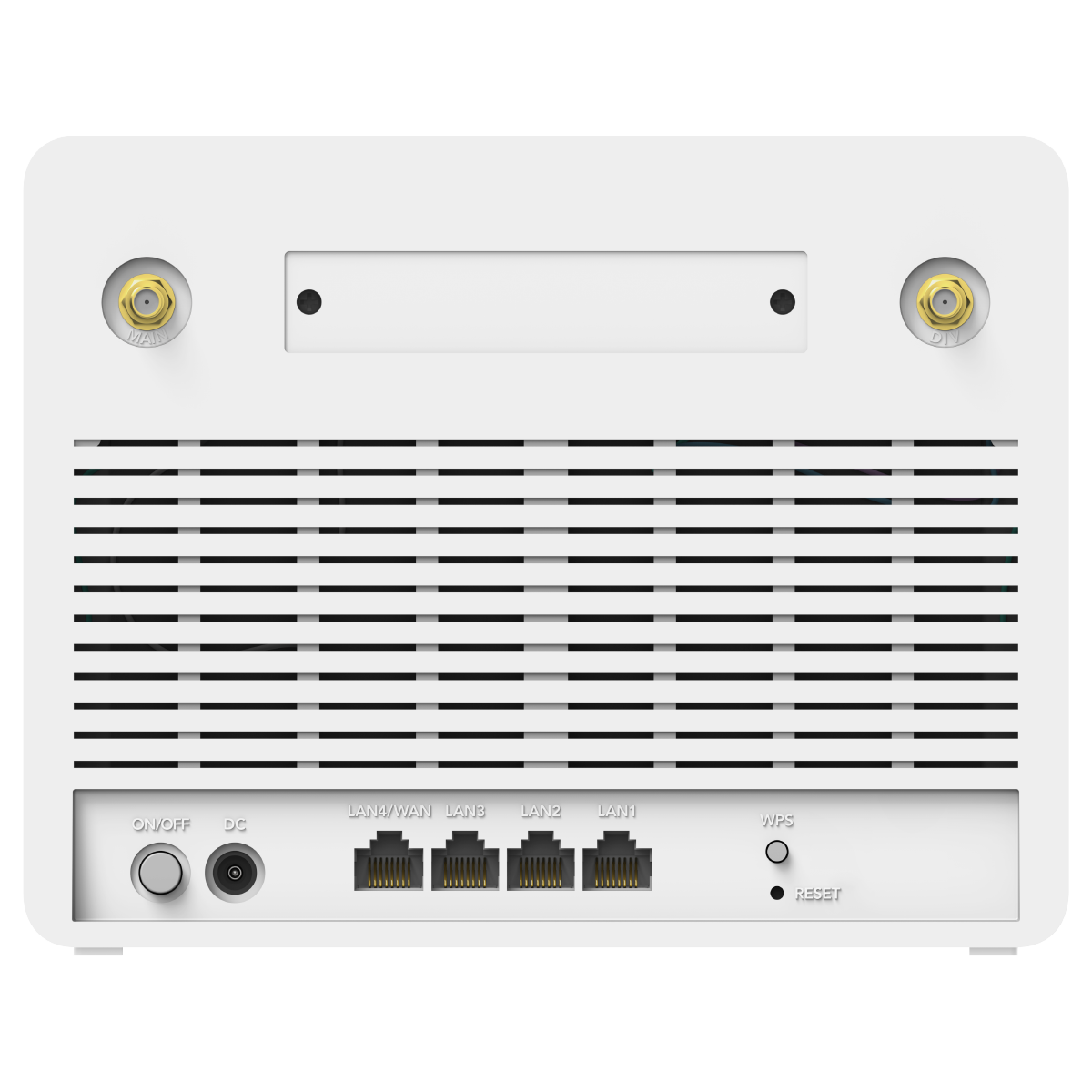

Back Panel¶
| Interface | Instruction |
|---|---|
| ON/OFF Button | Press to turn on or off the router. |
| DC Power Jack | Plug the provided power adapter to supply power. |
| LAN1/2/3 Port | Connect to an Ethernet device. |
| LAN4/WAN Port | Connect to the Internet or an Ethernet device. To switch between WAN and LAN, please log into the management webpage and go to Advanced Settings -> Network -> LAN/WAN Switch. |
| WPS Button | Press for 1 second to authorize WPS connection. |
| RESET Button | Press for 5 seconds to restore factory defaults. |
| MAIN/DIV Antenna Connector | Connect the included cellular antennas to improve mobile signal reception. |

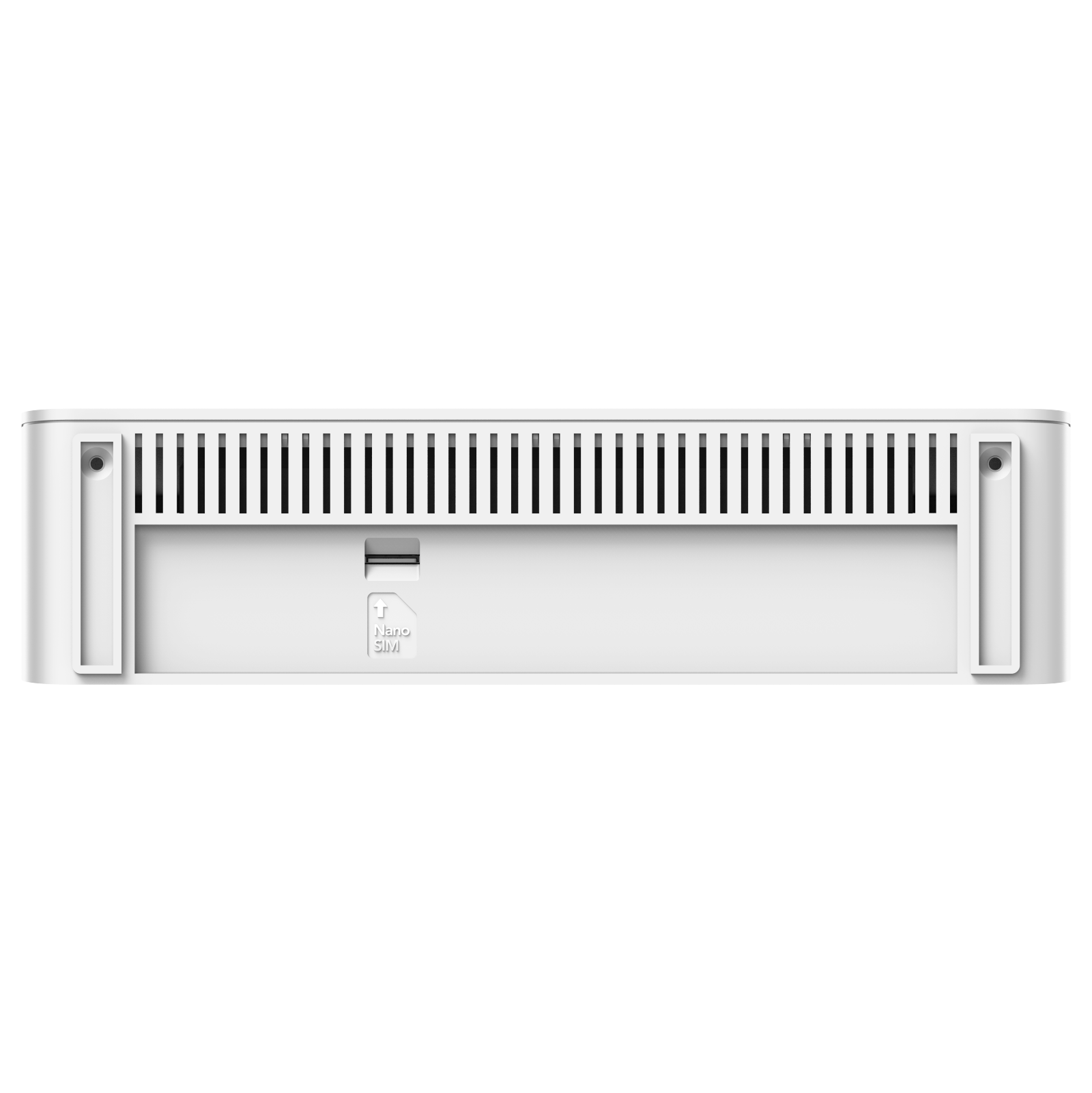

| Nano SIM Slot | Insert a nano SIM card to access the cellular network. |
