System Status

System Status in Wireless Router Mode

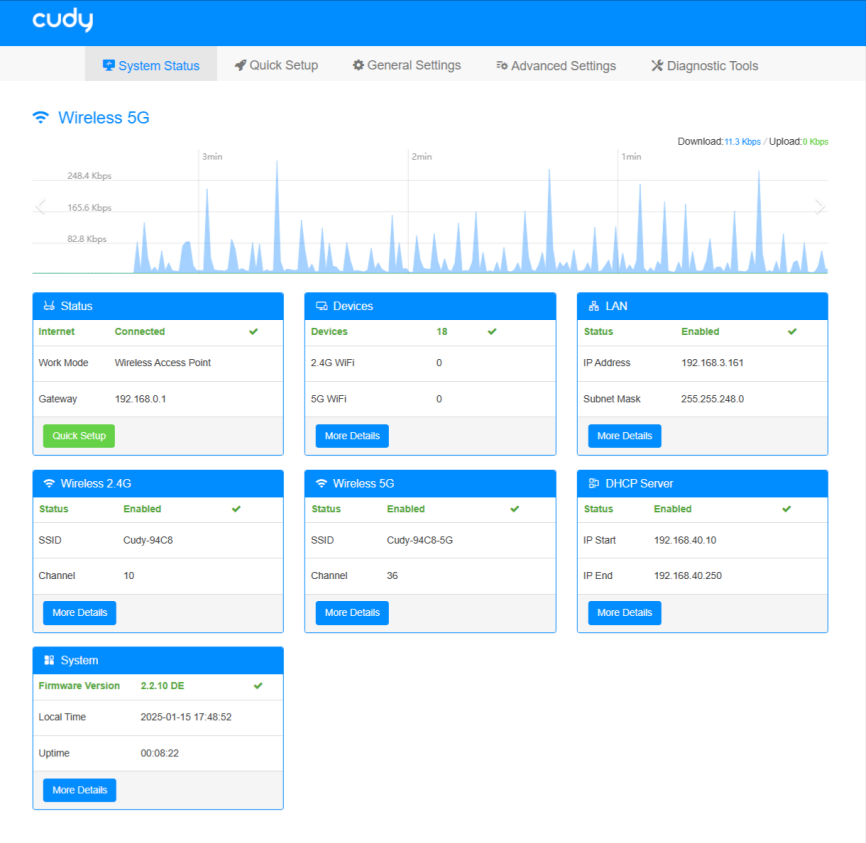

System Status in Wireless Access Point Mode

Status

shows the Router’s Internet connection status and current work mode, as well as the Interface type. Click Quick Setup to redirect to the Quick Setup page for a change.

Device

shows the number of devices connected to this Router, via Ethernet cable or 2.4G WiFi or 5G WiFi. Click More Details to know more information about these devices, or make some configurations.

  • Internet: Click to enable/disable the Internet for the devices.
  • VPN: Click to enable/disable VPN for the devices.
  • Operation: Click to pop up the editing page as below, where you can customize the device name and limit the download/upload rate.

WAN

shows the WAN port connection status. Click More Details to know more information about it or make changes on Settings page. Please refer to WAN Mode for more detailed instructions.

LAN

shows the connected LAN port status. Click More Details to know more information about it or make changes on LAN settings page.

Wireless 2.4G

shows the Wireless 2.4G status. Click More Details to know more information about it or make changes on Settings page. Please refer to Wireless for more detailed instructions of it.

Wireless 5G

shows the Wireless 5G status. Click More Details to know more information about it or make changes on Settings page. Please refer to Wireless for more detailed instructions of it.

IPv6

shows IPv6 connection status. Click More Details to know more information about it or make changes on Settings page. Please refer to IPv6 for more detailed instructions of it.

VPN

shows VPN connection status. Click More Details to know more information about it or make changes on Settings page. Please refer to VPN for more detailed instructions of it.

DHCP Server

shows the DHCP Server status. Click More Details to know more information about it or make changes on Settings page. Please refer to DHCP Server for more detailed instructions of it.

System

shows the System status. Click More Details to view more information about it or make changes on Settings page.

  • Status shows the Router info about firmware version, model, hardware version, local time and uptime.

  • Statistics shows the detailed traffic information of each interface in the statistics list.

  • ARP lists the connected devices' IP address with its bound MAC address, Hostname and Interfaces.

  • Active IP Routes table contains a list of routes to network destinations associated with and known by the Router.

  • System Log tracks all the Router behaviors. It is used for technical support to diagnose and troubleshoot for the Router.
