Intall & Power

Install Router

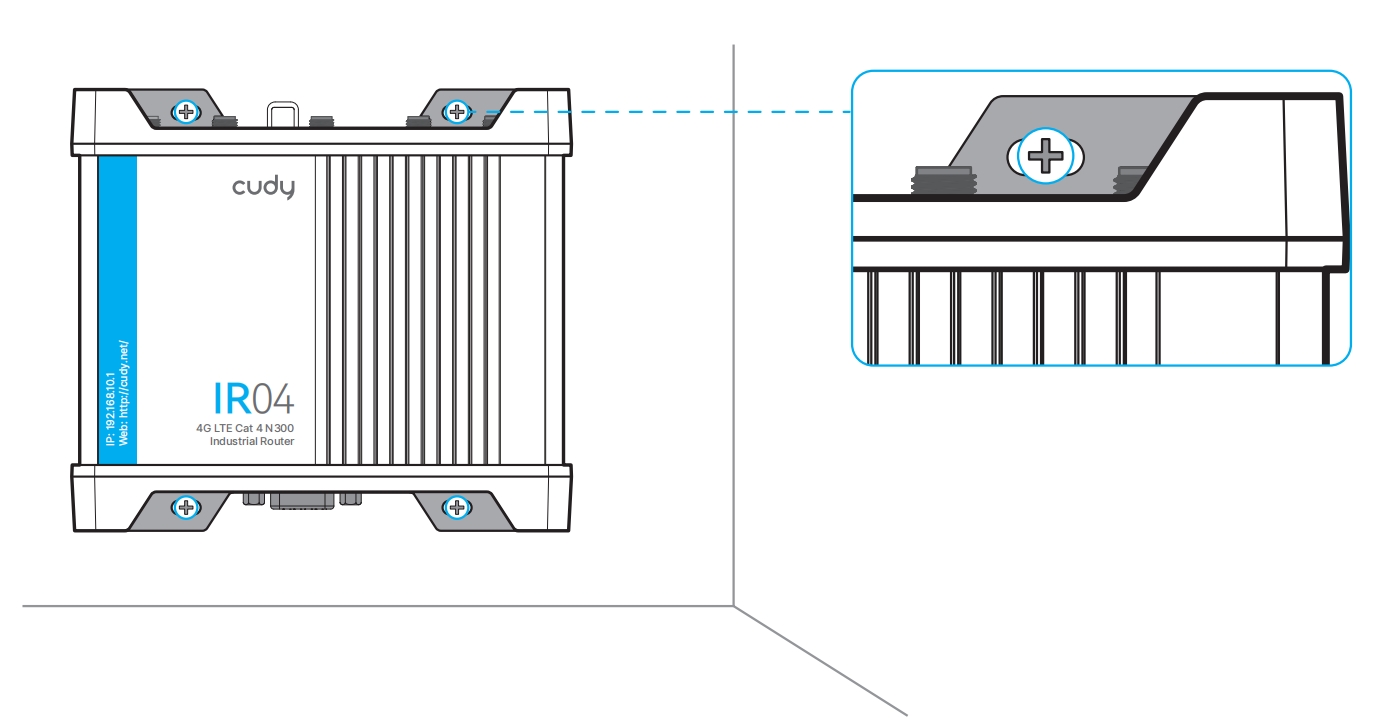

Method A. Wall-Mount

Insert four screws (not provided) through themounting holes and fasten them into the wall.

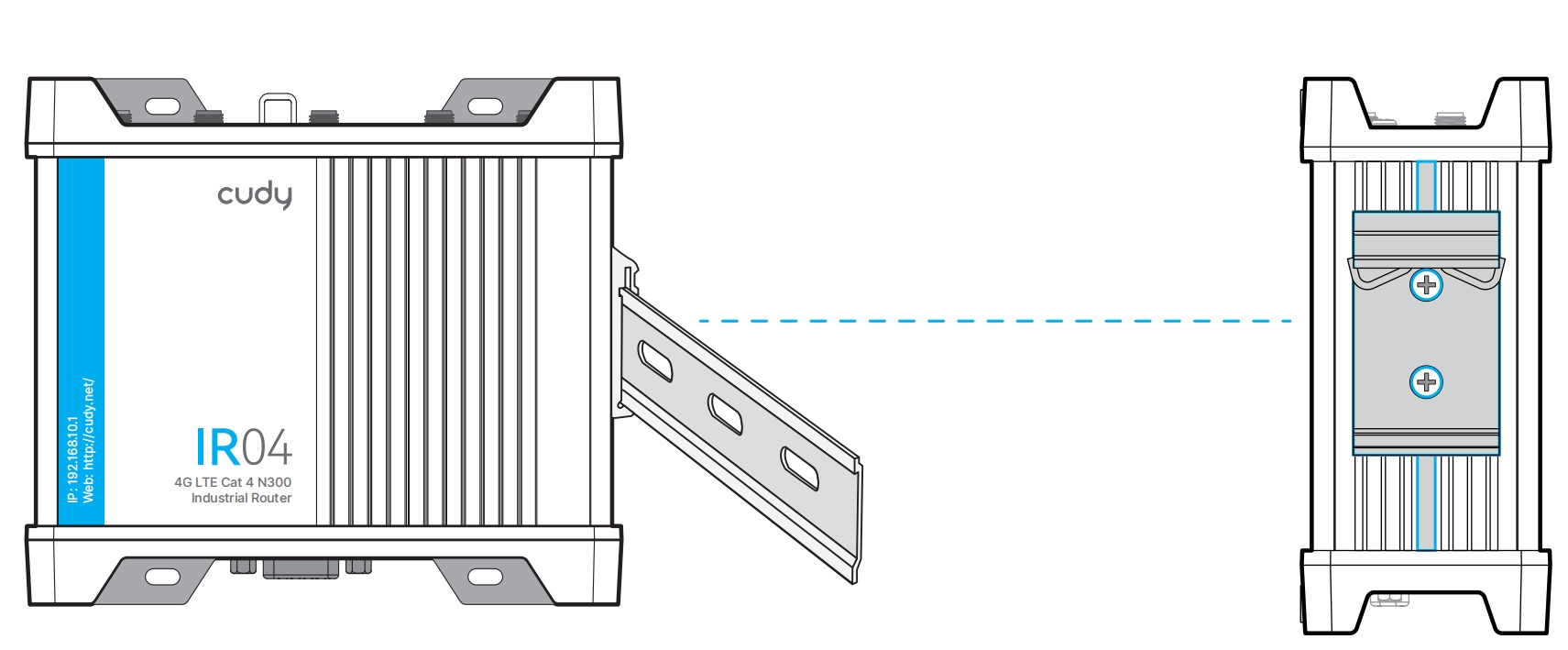

Method B. DIN-Rail

1. Tighten the bracket onto the router with the provided screws.
2. Hook the unit over the DlN-rail.
3. Push the unit bottom towards the DlN-rail until the bracket snaps into place.

The router must be grounded properly for optimal performance and safety.

---

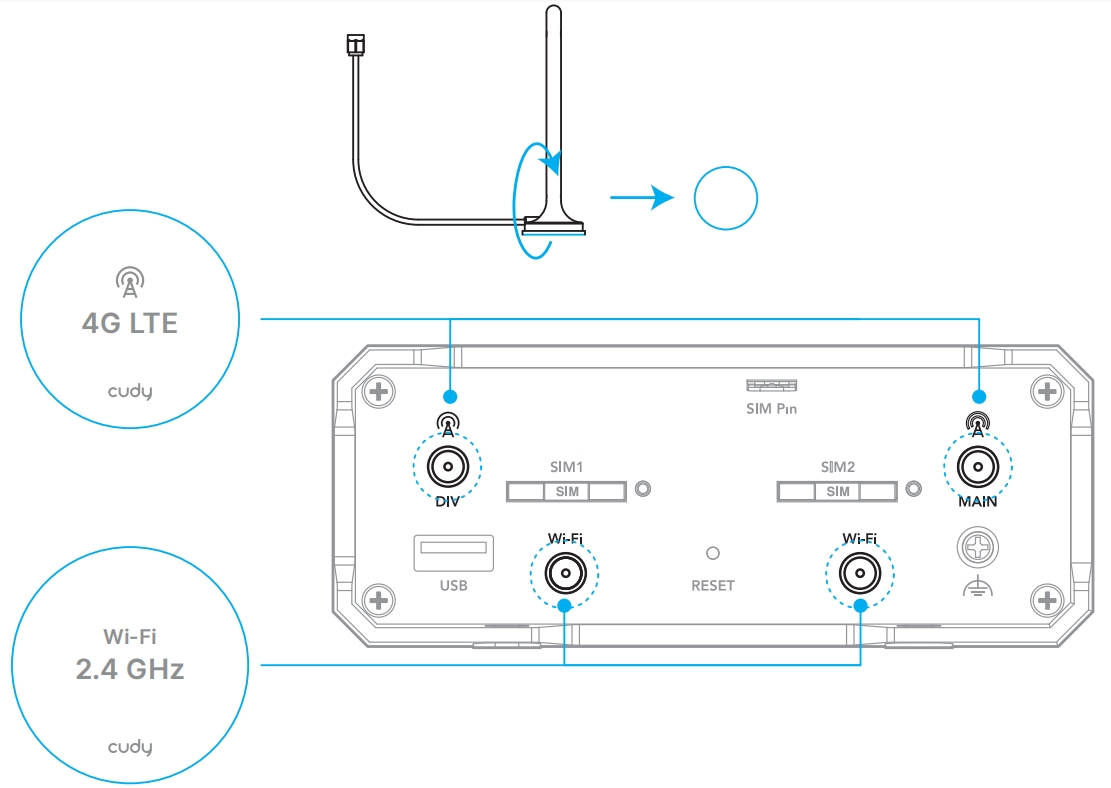

Install Antennas

1. Assign the 4G/Wi-Fi antenna to each connector as labeled.

2. Align the gold-plated SMA connector on the antennas and the router. Screw the nut clockwise until tight.

3. Mount antennas vertically on the magnetic base.

---

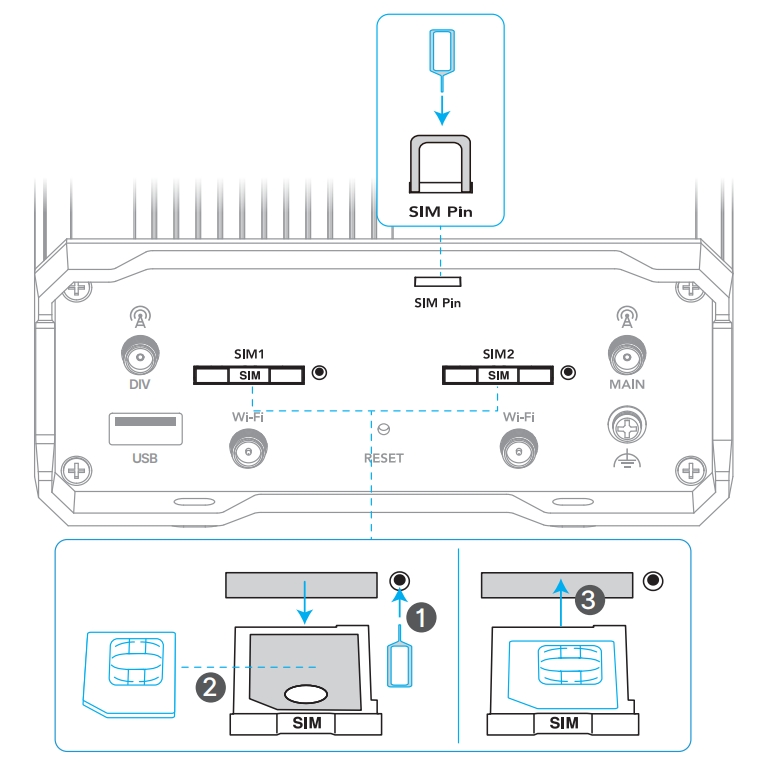

Install SIM Cards

1. Insert the SlM pin into the hole beside SlM slot to pop up the SlM tray.

2. Put the SlM card in the SlM tray. SlM card adapters are provided for Nano or Micro SlM cards.

3. Insert the SlM tray back into the SlM1/2 slot. And store the pin back into the SlM Pin slot.

Power off the router before installing antennas or SlM card.

---

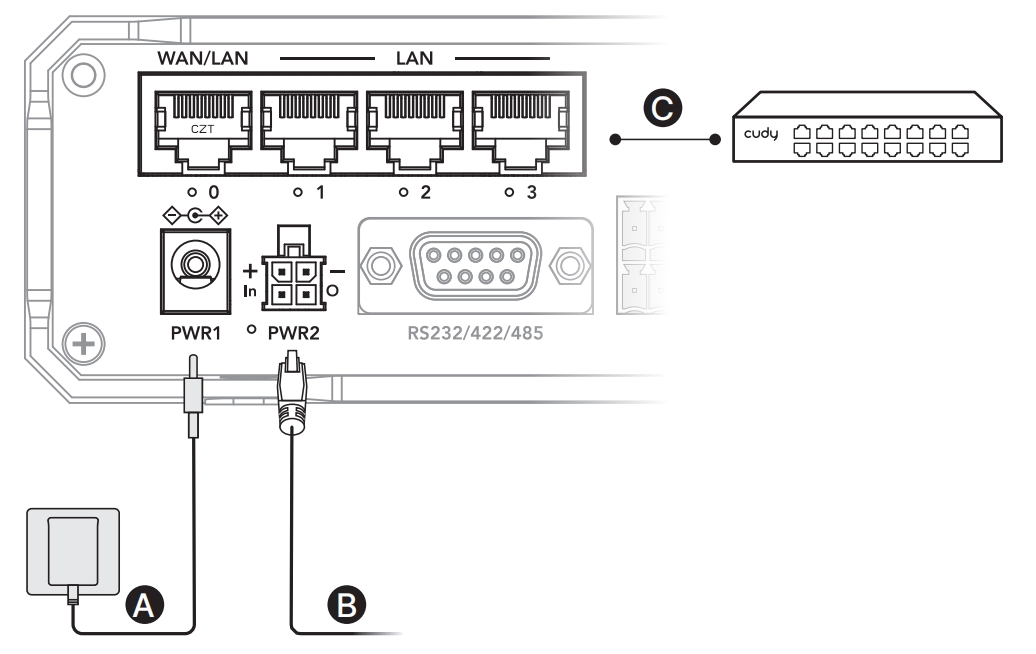

Power Supply

Method A. Connect the provided DC power adapter to PWR1.

Method B. Connect a power source to PWR2 using the provided 4-pin connector.

Method C. Connect a PSE or PoE adapter to the WAN/LAN or LAN 1/2/3 port.

WAN/LAN port supports standard 802.3at/af PoE, and LAN 1~3 ports support passive PoE.
