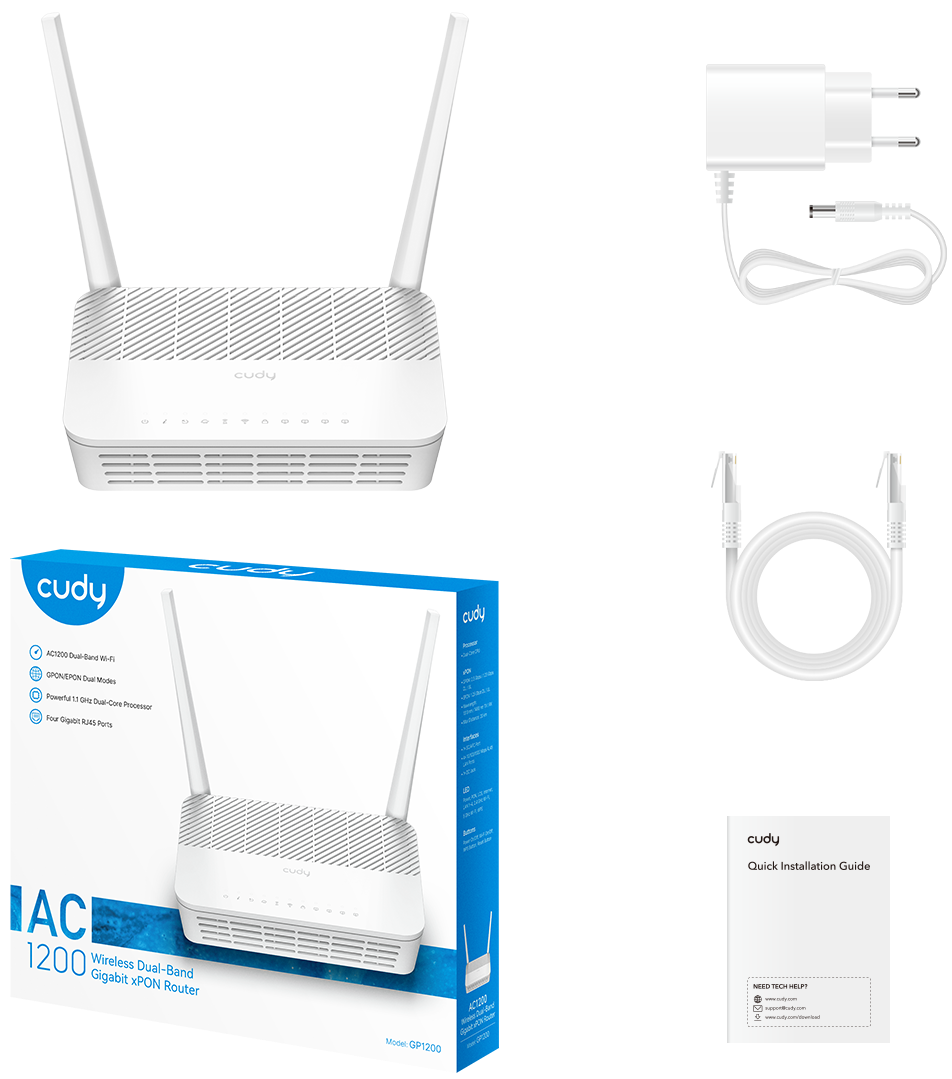

Overview

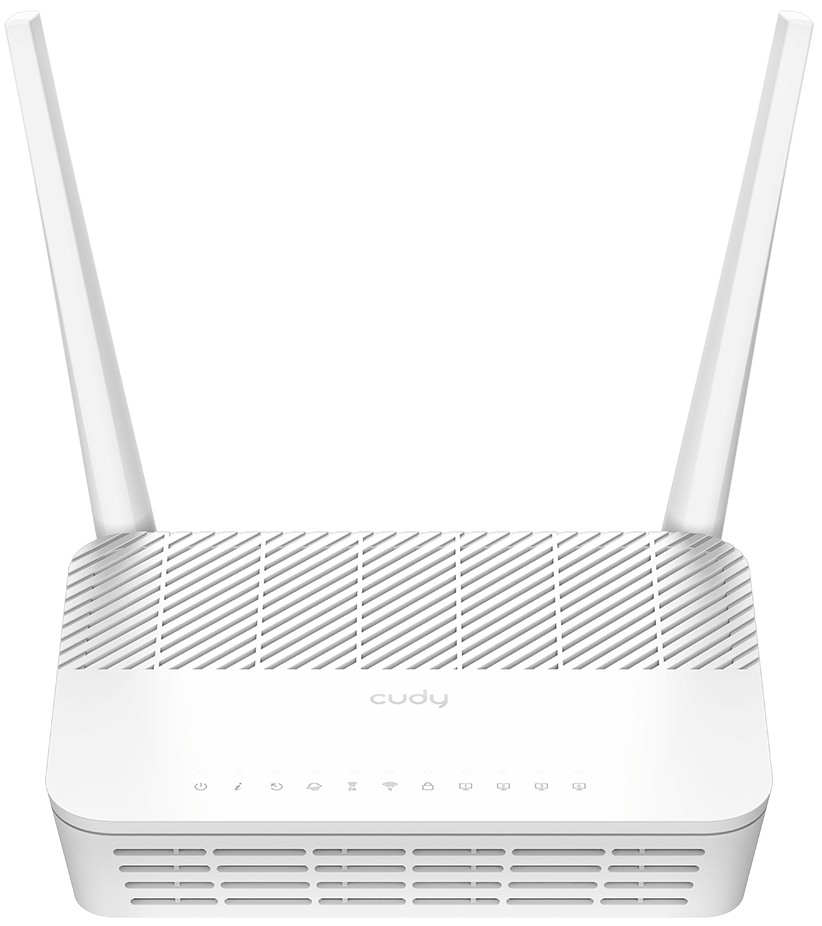

Front Panel¶
| LED | Status | Description |
|---|---|---|
.png){kind=small} (System) |
On | The system has started up successfully. |
| Flash | The system is starting up or the firmware is being upgraded. Do not disconnect or power off your Router in the process. | |
| Off | Power is off. | |
.png){kind=small} (Internet) |
On | Internet service is available. |
| Off | The Router’s Internet port is unplugged or no Internet available. | |
.png){kind=small} (LAN) |
On | 1~4 powered-on device is connected to the Router’s LAN port. |
| Off | No powered-on device is connected to the Router’s LAN port. | |
.png){kind=small} (WAN) |
On | The Router’s WAN port is connected. |
| Off | The Router’s WAN port is not connected. | |
.png){kind=small} (2.4GHz Wireless) |
On | 2.4GHz Wireless Band is enabled. |
| Flash | 2.4GHz WPS Connection is in process. | |
| Off | 2.4GHz Wireless Band is disabled. | |
.png){kind=small} (5GHz Wireless) |
On | 5GHz Wireless Band is enabled. |
| Flash | 5GHz WPS Connection is in process. | |
| Off | 5GHz Wireless Band is disabled. |

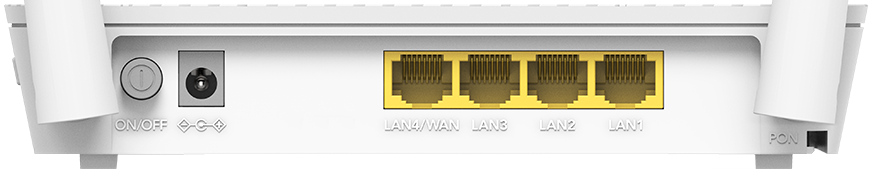

Back Panel¶
.png)
| Interface | Description |
|---|---|
| ON/OFF Button | Press to turn on/off the PON Router. |
| Power Jack | Plug the provided power adapter to supply power. |
| LAN1/2/3 Port | Connect to an Ethernet device. |
| LAN4/WAN Port | Connect to an Ethernet device or Internet. |

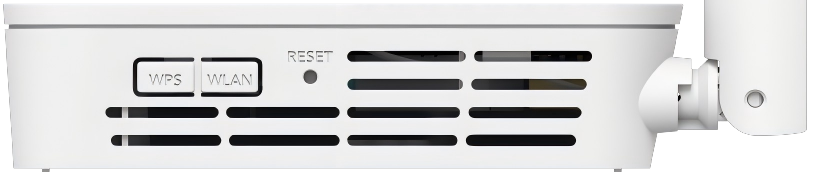

| WPS Button | Press for 1 second to authorize WPS connection. |
| WLAN Button | Press for 2 seconds to turn on/off Wi-Fi. |
| RESET Button | Press for 5 seconds to restore factory defaults. |

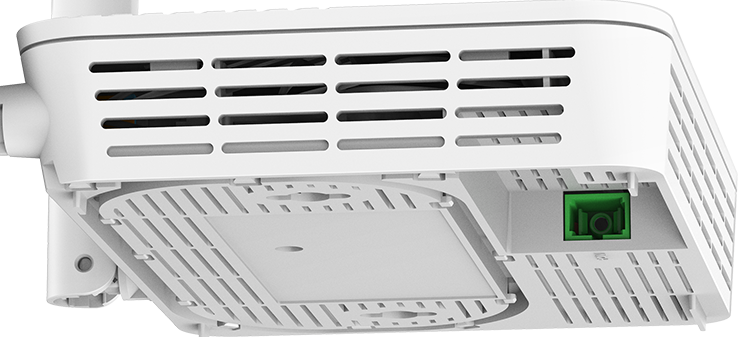

| PON Port | Connect to the Internet with an optical fiber. |
